Most people look at a high-capacity forklift and think, “It’s just a bigger forklift.”
That couldn’t be further from the truth. There’s no “standard” or “one size fits all”. Almost every truck is a specialized piece of equipment engineered to succeed in specialized applications where the load shapes change, the center of gravity changes, the risk increases dramatically and the attachment often matters more than the forklift itself.
This is where experience becomes critical. In high-capacity applications the wrong attachment doesn’t just hurt efficiency, it can shut an operation down completely.

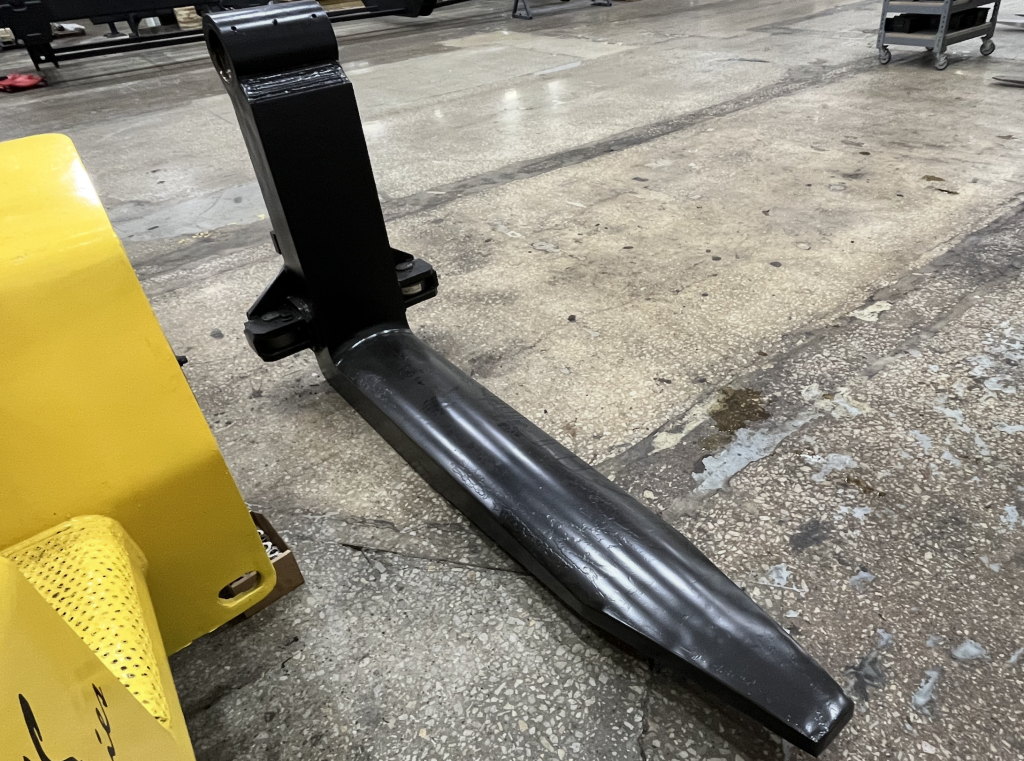

One of the most recognizable high-capacity attachments in heavy industry.
Handling:
Steel coils concentrate massive weight into a compact footprint. The weight of the coil itself can lead to its own deformation if the attachment used to move it are incorrect. Standard fork edges are not sloped so when 40-60,000 lbs is placed on them, the sharp edges deform the circular shape of the coil.
While some forks can be machined into a sloped edge to accommodate a coil; not all operations can properly make use of them.
A coil ram stabilizes the load properly by concentrating the weight safely. This is critical in steel service centers and manufacturing environments where improper use can lead to structural damage much easier for forks than a ram.

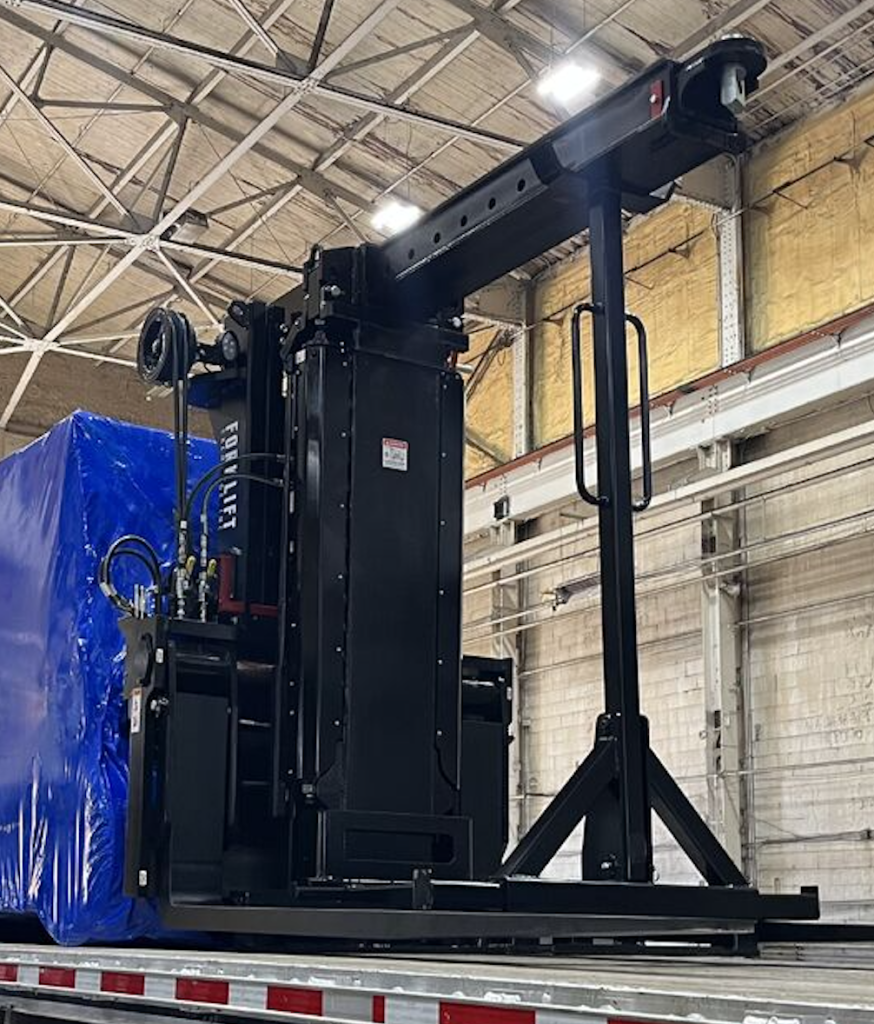

Extremely specialized and incredibly important in metal handling operations.
Billets are heavy, round, and difficult to stabilize so standard forks create rolling risks, unsafe handling and the potential for damaging your product. Forks are also engineered to pick something up as close to the mast as possible. They are not designed to grab something out of a furnace at a distance as putting the load on the tips of the forks increases failure chances greatly.
Think of these as a coil ram with a grabber at the end of it. Its an over simplified explanation but you’ll see these a lot in forging applications for reaching inside of the forge. In these applications, stabilization is everything. Workers can not operate machinery in unsafe scenarios and reducing risks of failure is paramount. While forks are not engineered to carry the load on their tip, a billet grabber is specially engineered to do just that.

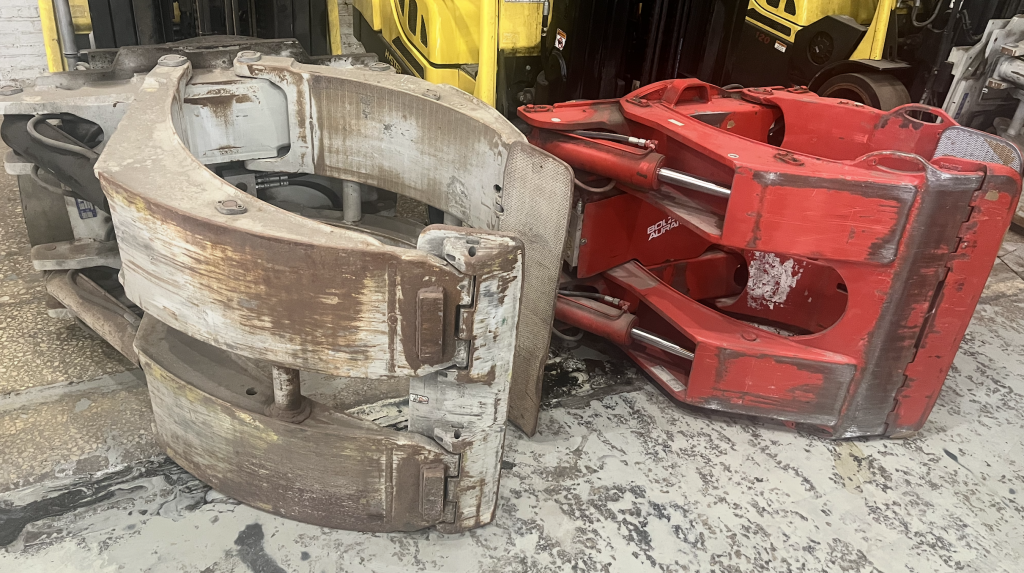

A perfect example of how attachments can completely redefine a forklift’s role.
Scale here matters. We’re not talking about tires for your car. No I mean tires as large as 1 & 2 story houses. These tires are massive in diameter, extremely awkward and often impossible to stabilize conventionally.
They work by securely clamping around the tire instead of trying to lift and tip it. They also allow for rotation and perceive positioning which is critical during installation and service work.
At the high-capacity level, these become even more important.
Loads vary dramatically in:
On a heart of the line 5,000 lb forklift, the forks are light enough that you can move them around by hand. However when you’re talking about a forklift that is 36,000 lbs, a single alone can weigh thousands of pounds. There’s no moving those by hand.
What makes heavy duty fork positioners different:
The answer is simple. Hydraulic positioning. It improves safety by preventing operators from trying to manually adjust massive forks either by hand or with another piece of equipment. If you have to stop your operation for 10 minutes every time you have to pick up something new, thats an incredible loss of time.
On large trucks, even adjusting forks manually becomes a major task and fork positioner does the job in seconds.
When dumping your load is part of the operation, these attachments are unrivaled.
A rotator does just what it sounds like. It will take the load your carrying on your forks and rotate it 180-360 degrees. This allows you to dump bins while still holding them. This is an impossible task without this attachment as it allows to load to rotate hydraulically.
Standard forks are incapable of the task a rotator performs. They can dump bins and rotate molds whether it’s seed on a farm or an injection molding blank.
This is the biggest mistake I see is that the weight of the attachments (and adjusted load center) are not considered. If you’re adding 5,000+ of steel to the front of your truck it’s going to affect your capacity. Companies focus only on forklift capacity without understanding the attachment impact.
At this level:
A forklift rated for 30,000 lbs with forks may perform very differently with a coil ram, clamp, or rotator installed.
Every detail matters:
This is where forklifts stop being simple equipment and start becoming engineered solutions.
