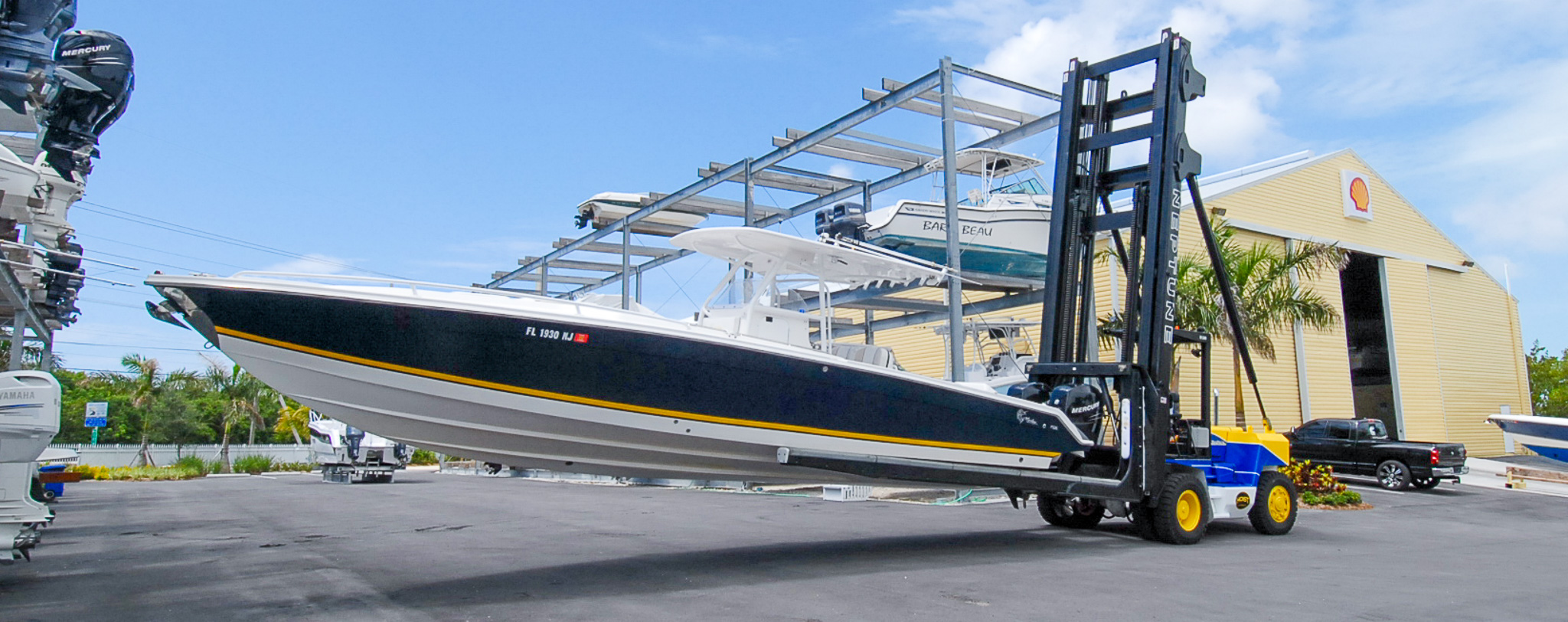

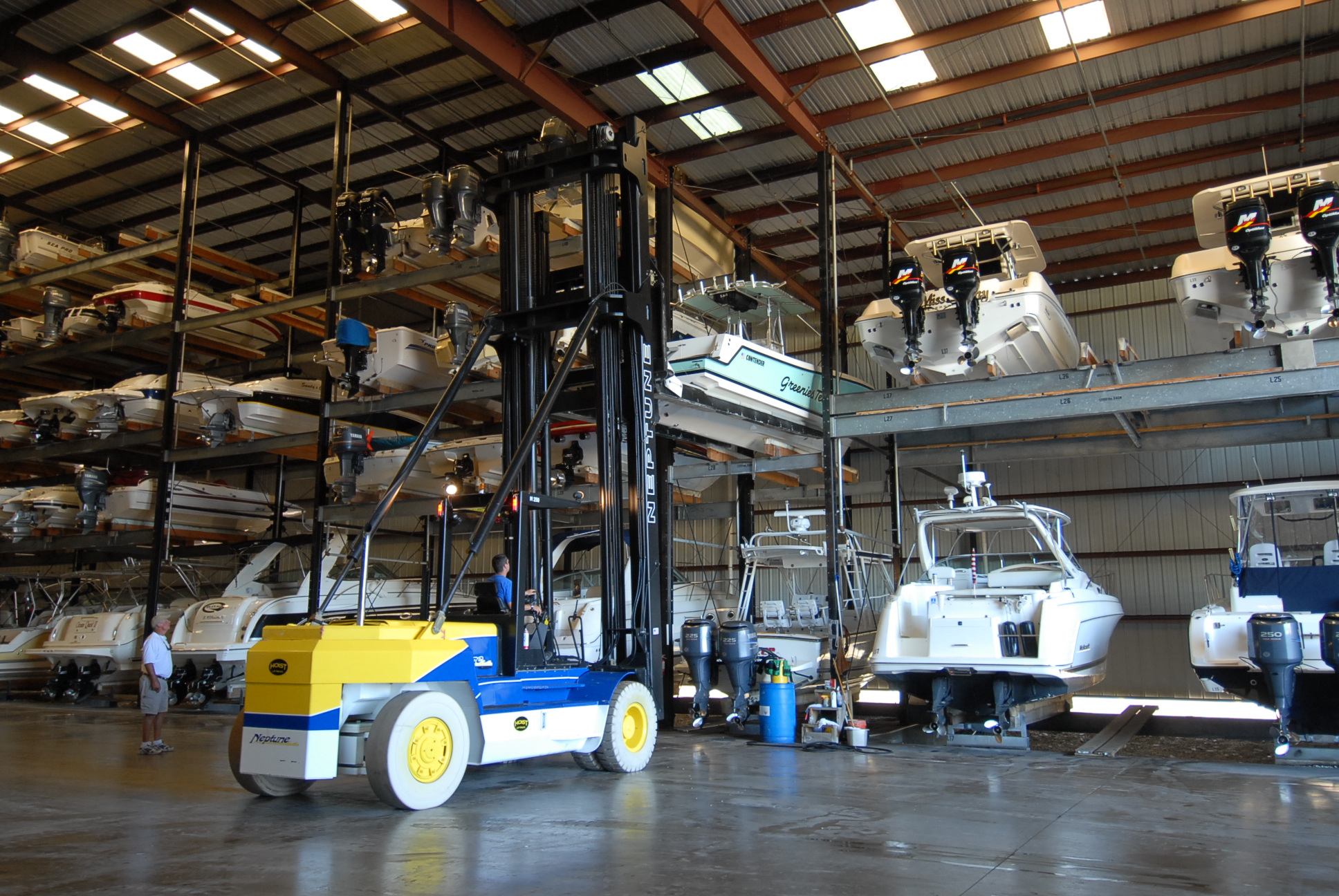

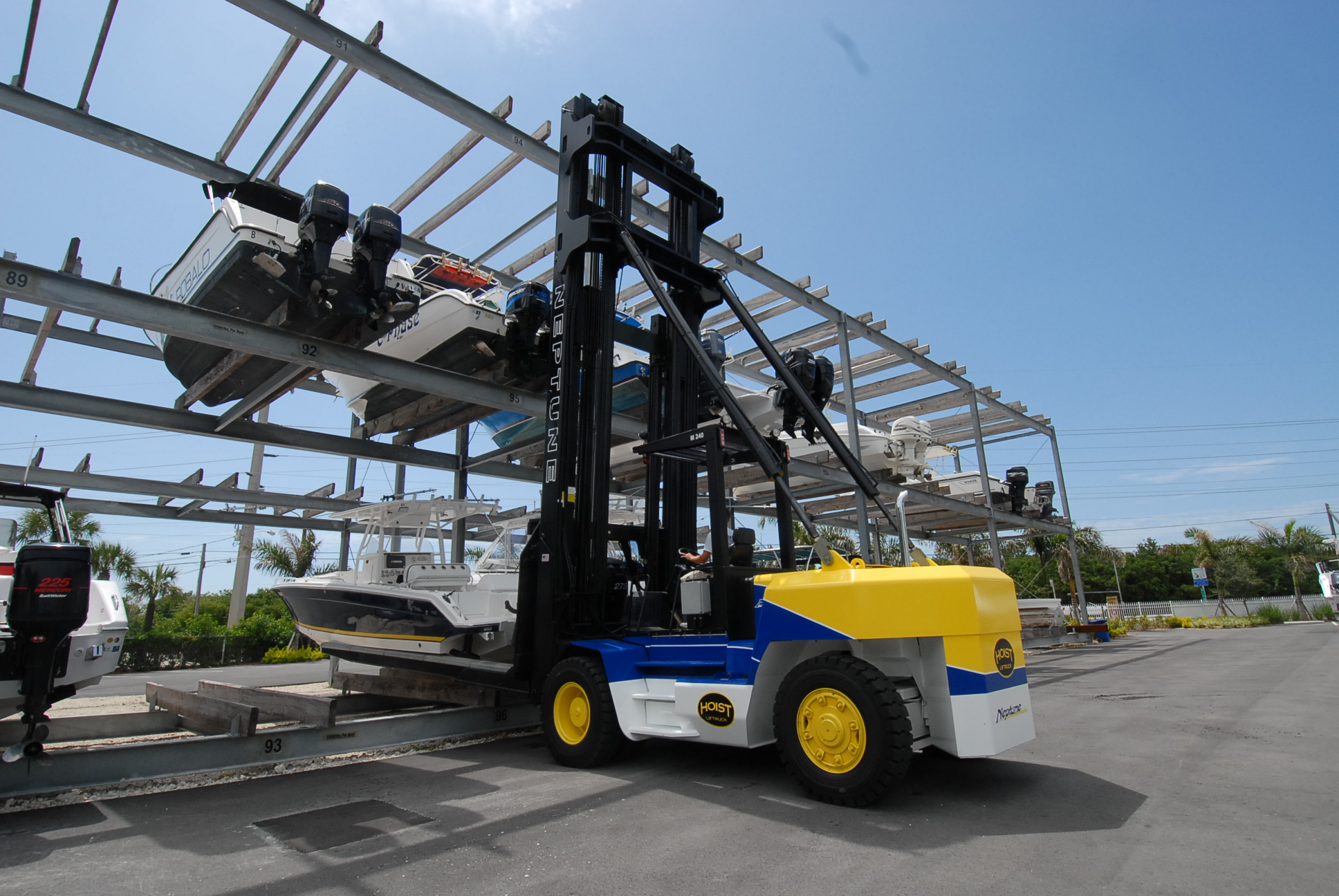

The Neptune Series handles boats with care, style and class. This sleek marina lift truck is perfect for a marina or boat storage facility of any size.
The spacious cab, air ride seat and tilt steering provide maximum comfort for the operator. Intuitive electronic joystick controls and superior visibility allow for safe and effortless handling, as well as fast cycle times. The advanced rubber fork covering system securely grips boats without damage. Galvanization and three-step paint process provide maximum corrosion protection.
While focusing on robustness and comfort, we also understand that time is money. That’s why each Neptune Series is engineered to provide optimal operating and fuel efficiency. The high-performance Cummins diesel engine are powerful, yet offer reduced fuel consumption and emissions. Features such as variable pumps adjust oil flow accordingly to provide quicker lifting cycles while also reducing fuel consumption.
As with all Hoist Material Handling equipment, the Neptune Series is 100% made in the USA. More than 75% of each truck is manufactured in-house at our East Chicago, Indiana factory with the remaining components sourced from reputable U.S. companies, such as Cummins, Dana and Parker.
OVERVIEW
SPECS
CAPACITY RANGE
15,000 – 60,000 lbs. (7 – 25 tonnes)
WHEELBASE
94 – 170 in. (2,400 – 4,300 mm)
LOAD CENTER
96 in. (2,500 mm)
The Neptune Series is designed with a two-stage, wide-open mast and unique low-profile counterweight to provide the operator with unobstructed views in all directions.

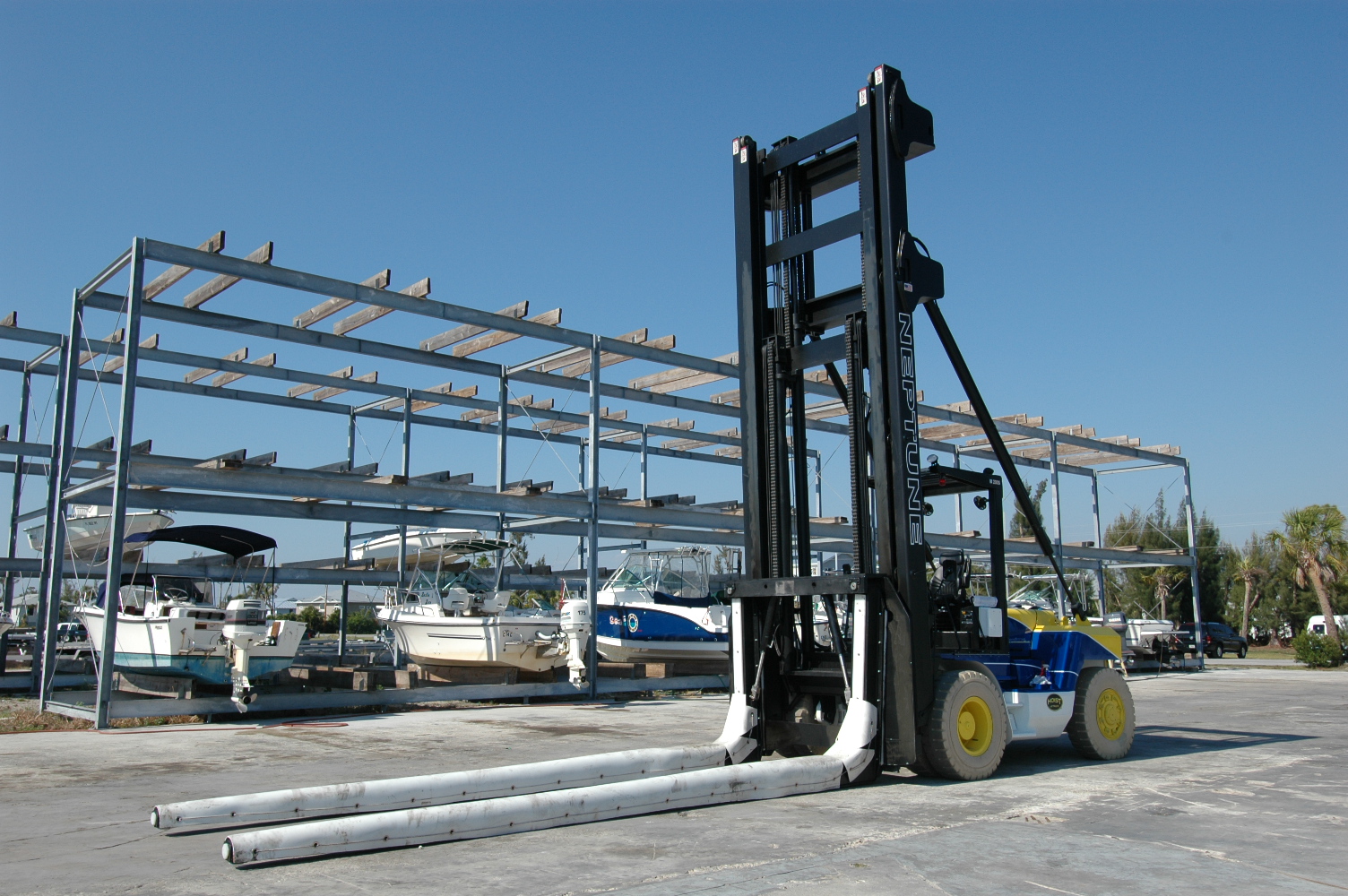

The standard swing-style fork carriage allows the forks to operate independently or simultaneously. The forks are made of heavy-wall tubular construction and are hot-dip galvanized to protect against corrosion. The extruded rubber fork covering system provides added protection and is extremely resistant to cuts and tears. Each fork is covered with five bolt-on rubber sections, allowing sections to be easily unbolted and rotated to prevent uneven or premature wear.
A BIG TRUCK needs robust and reliable power in order to operate effectively and safely. The Neptune Series is powered by a high-performance Cummins diesel engine, three-speed powershift Dana transmission and load sensing hydraulic system, which offer not only power, but also increased productivity and fuel efficiency.
We understand the importance of being able to service your lift truck easily and efficiently. Whether it’s routine maintenance or on-site service call, the Neptune Series is designed to allow easy access to all integral components to minimize downtime. Easy-lift hoods, panels and doors give technicians immediate access to vital service points. The innovative hydraulic multi-gauge provides quick and easy pressure readings with a simple twist of the dial, eliminating the need to tap into individual hydraulic lines.
Every component on the Neptune Series is sourced from a reputable U.S. vendor or manufactured by Hoist Material Handling. Utilizing the same domestic components throughout our product lines provides you with not only cost savings, but also rapid parts availability.

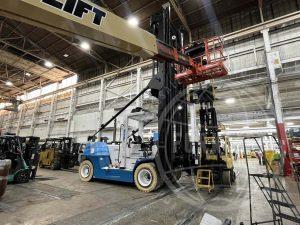

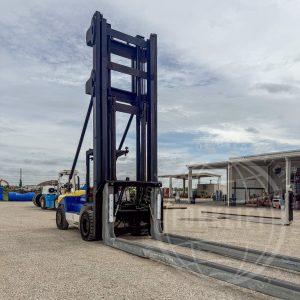

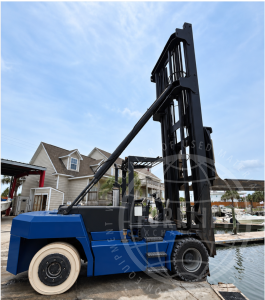

20,000LBS Capacity
30′ Positive / 12′ Negative
136″ Wheel Base
296″ Collapsed Mast Height
Brand New 22′ Marina Forks
Swing Carriage
Cummins Diesel Tier 2 (10,000 Hours)
Center Seat
OAL 219″
Ready for Immediate Shipping

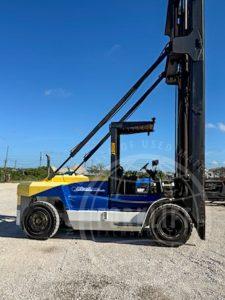

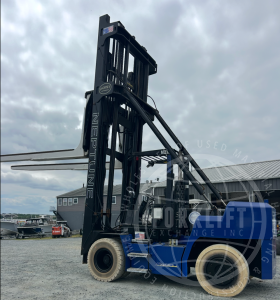

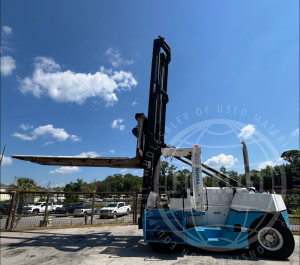

20,000 lbs Capacity (Can be upgraded to 25,000 lbs)
34’ Positive Lift / 12’ Negative Lift
307” Collapsed Height
115” Wheel Base
219” OAL
Swing Marina Forks
10,000 Hours +/- (Cummins)
Fully Serviced
New Chassis Paint
Forks/Carriage sandblasted & painted
12-month Power Train Warranty

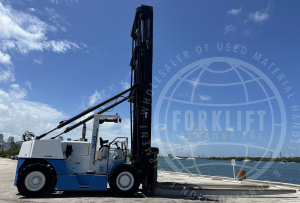

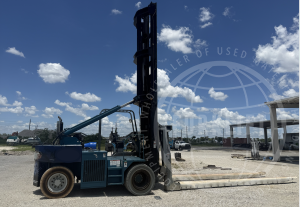

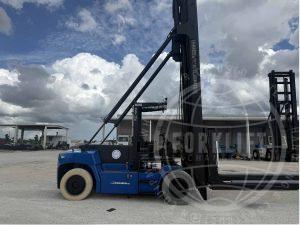

20,000LBS Capacity
30’ Pos / 12’ Neg
136” Wheel Base
20’ Swing Marina Forks
Estimated 9,500 Hours +/-
Running/Operating Condition
