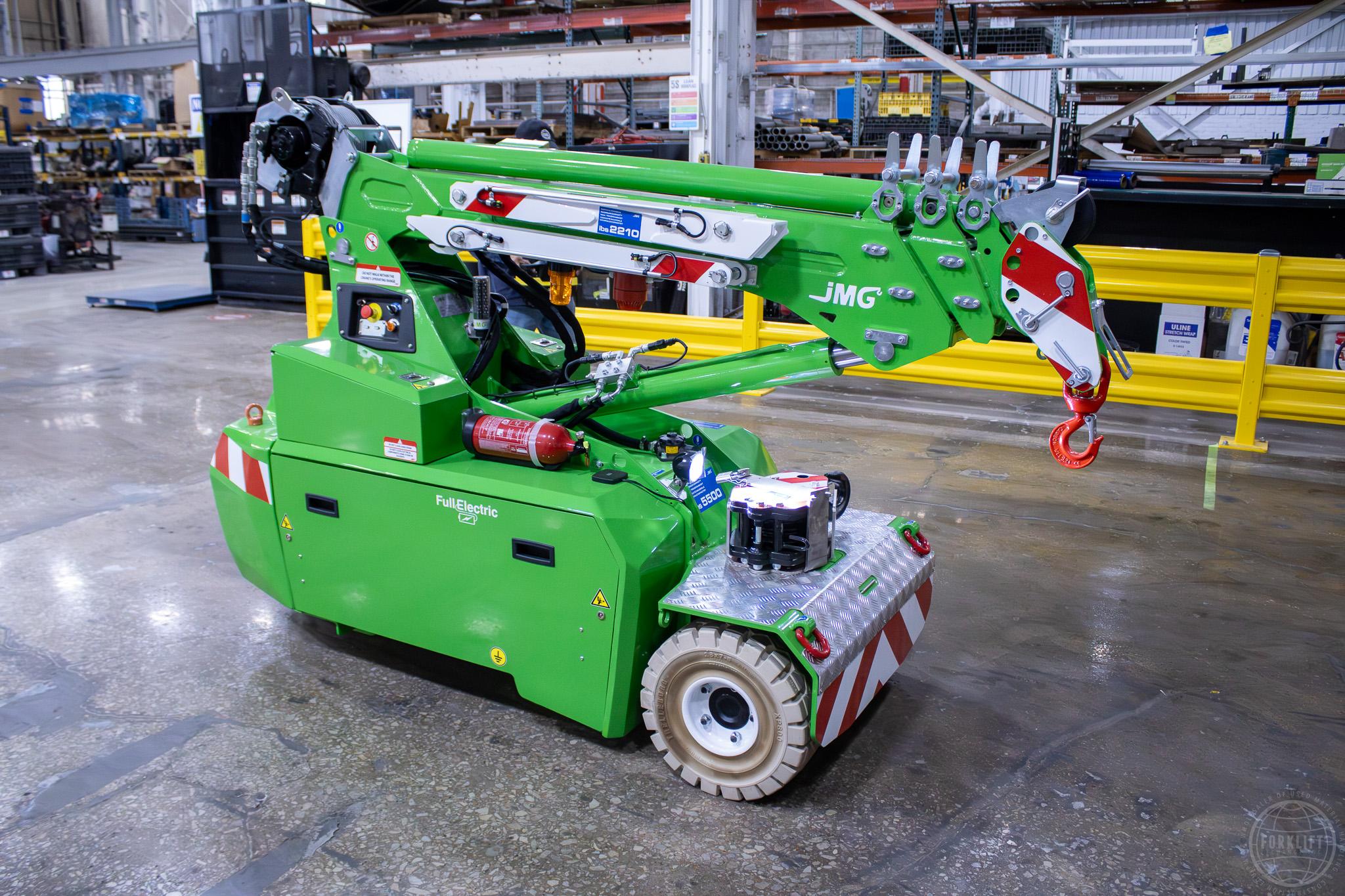

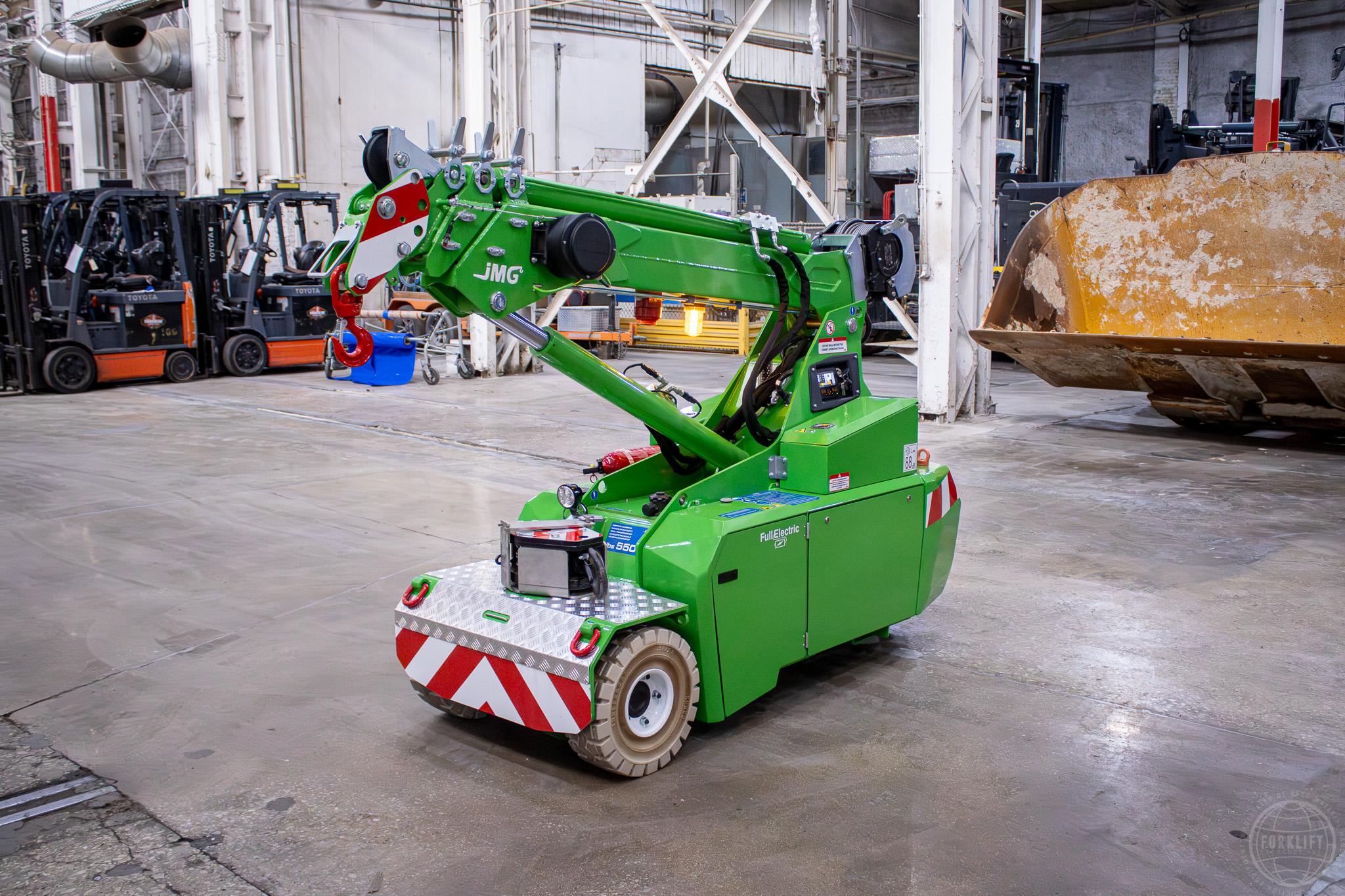

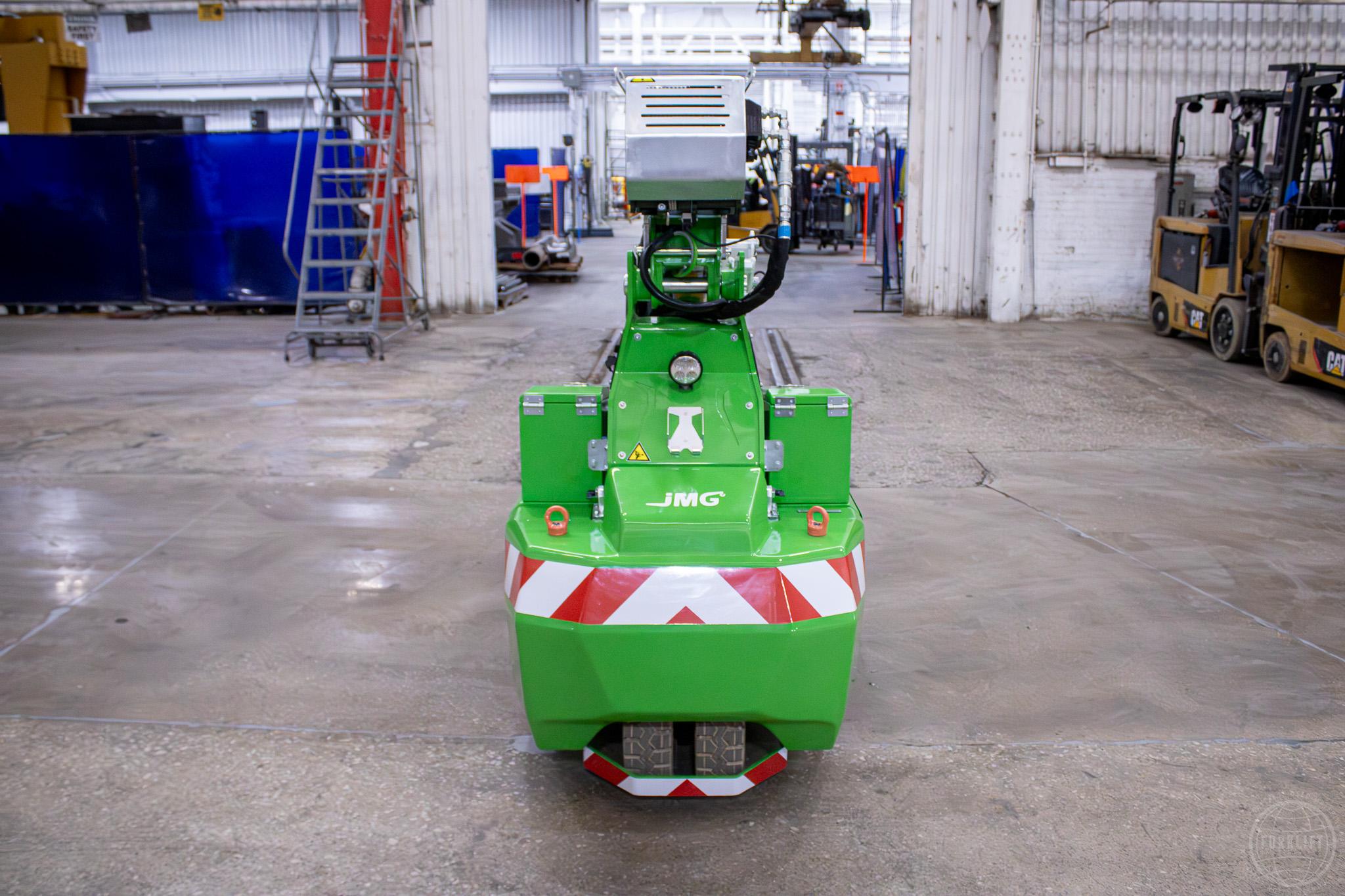

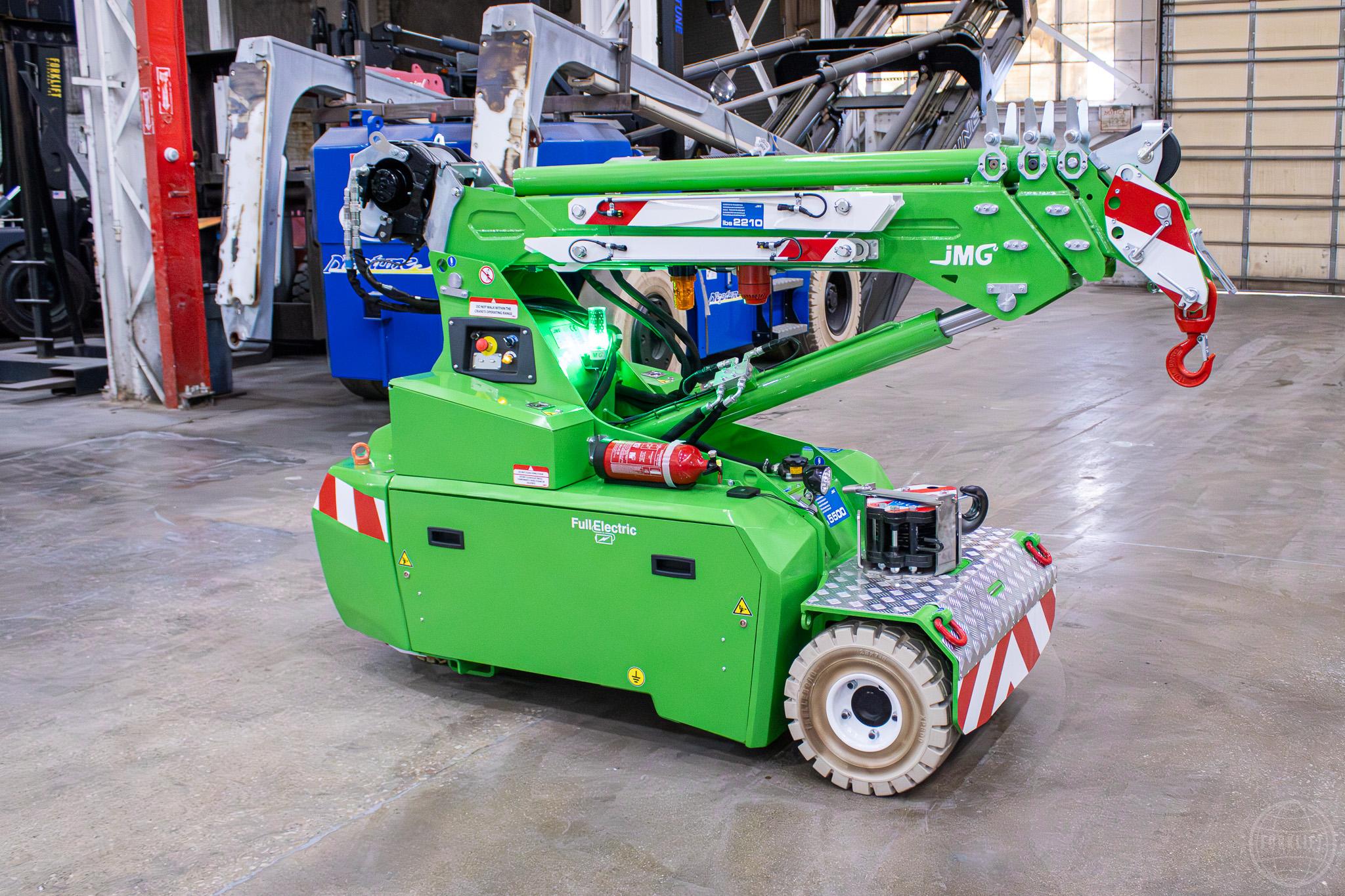

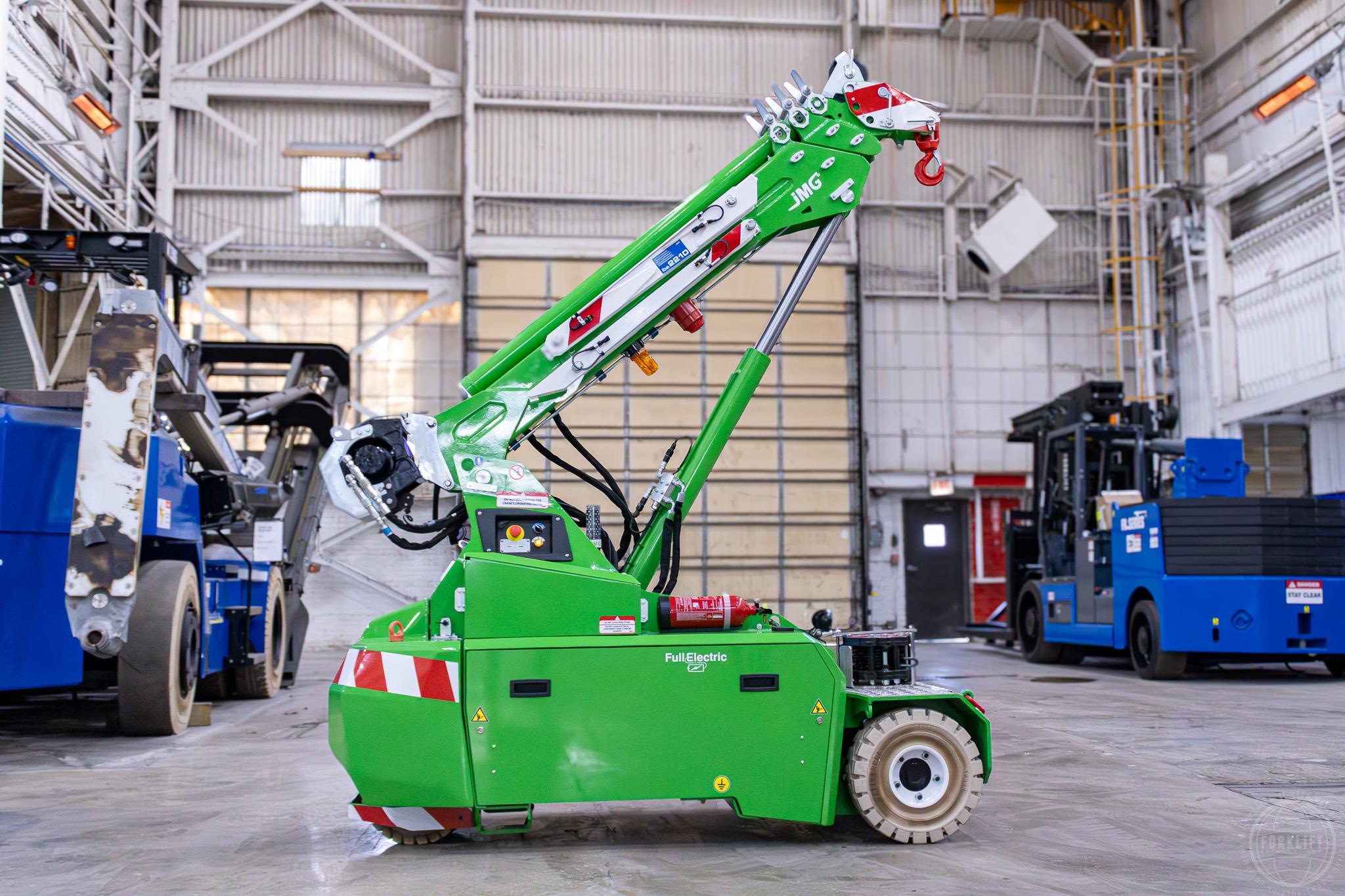

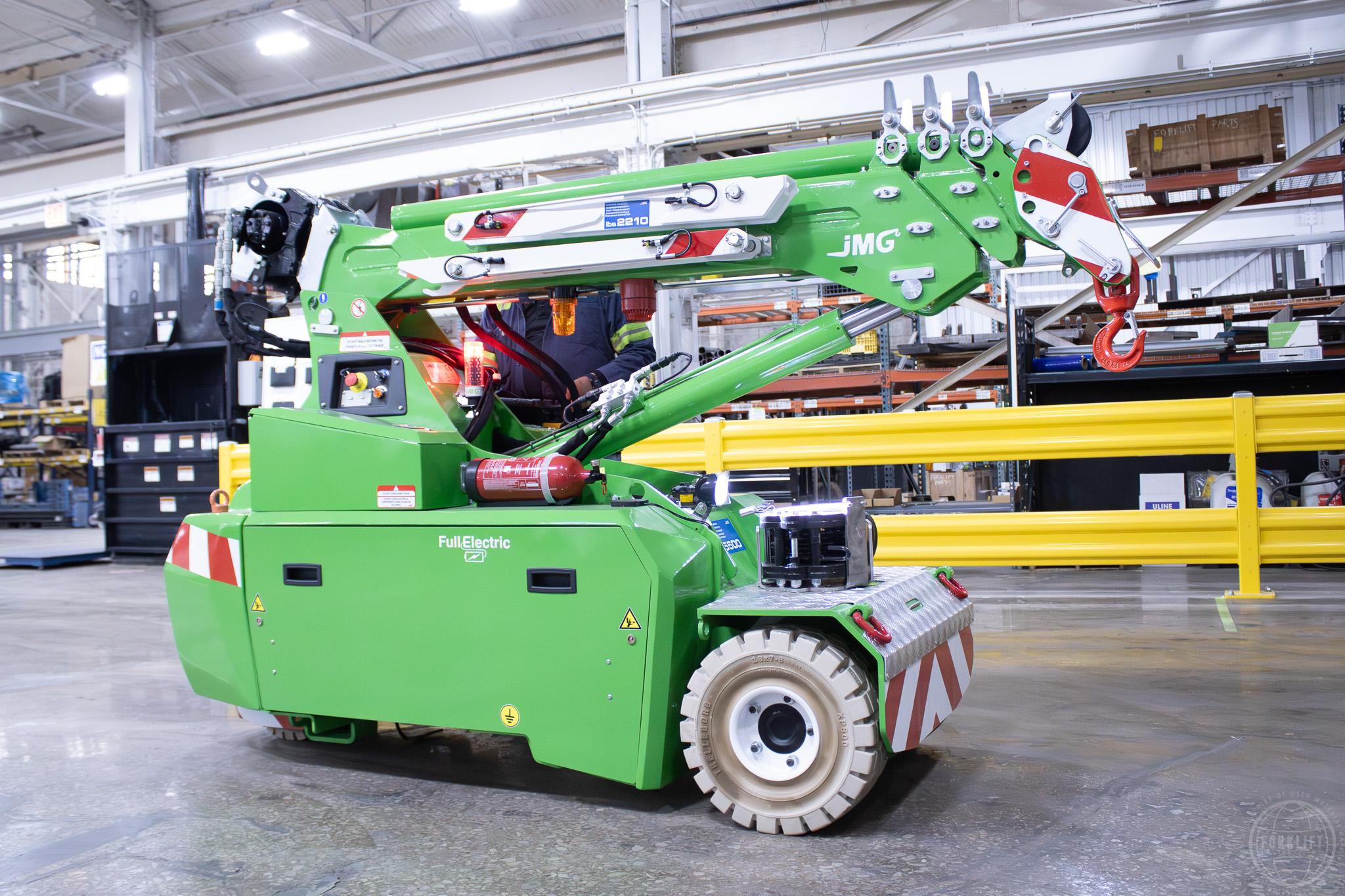

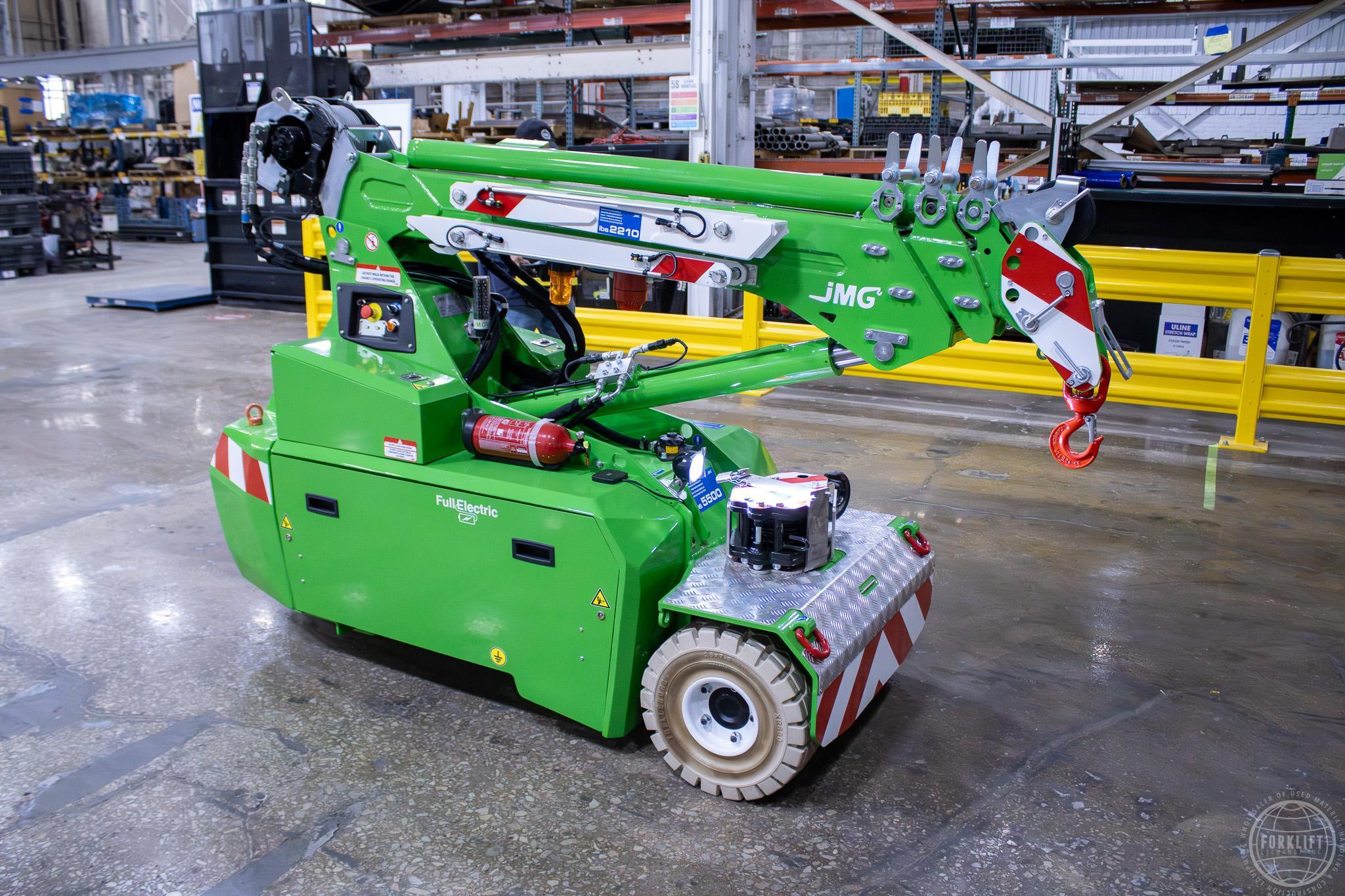

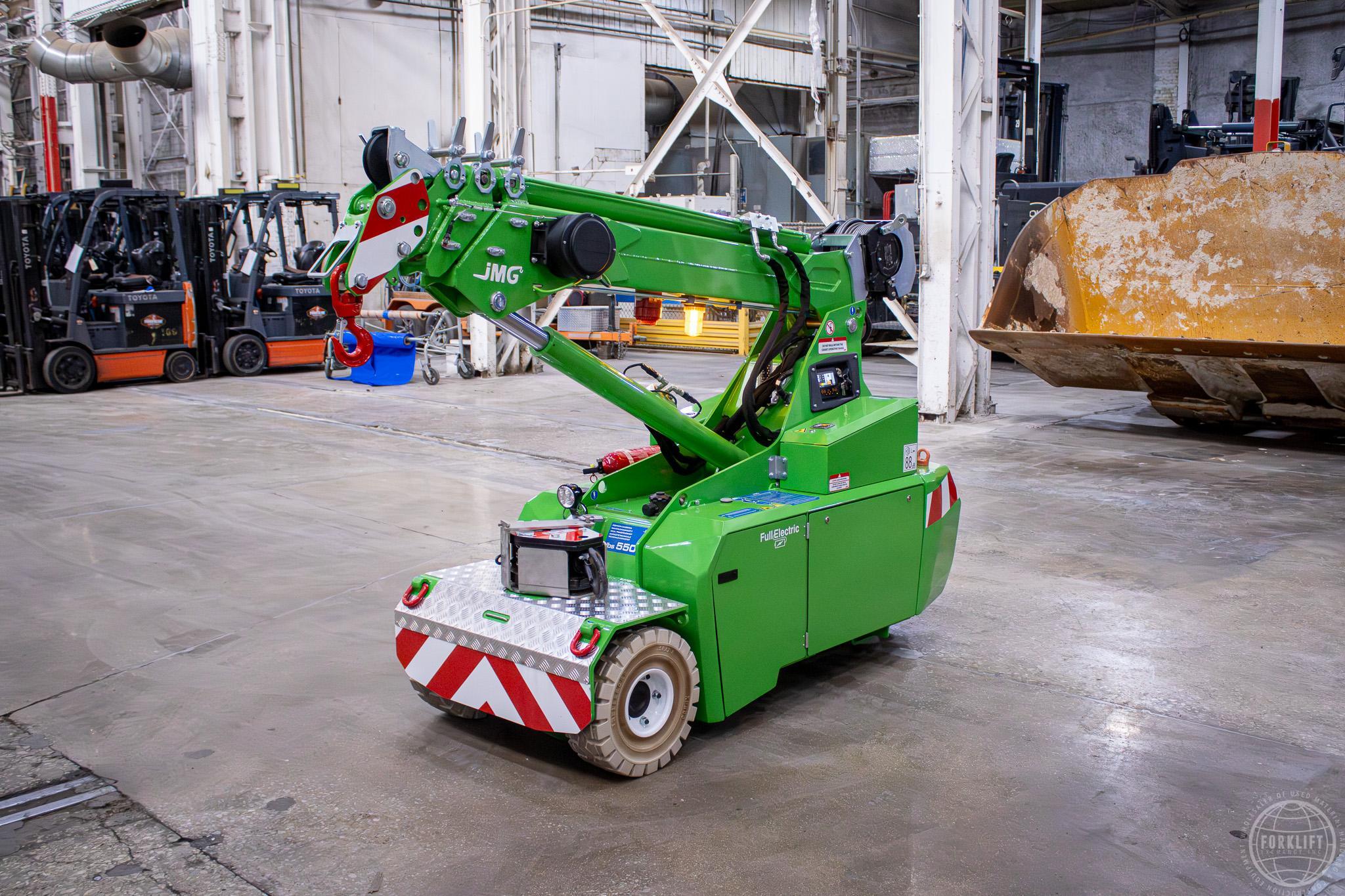

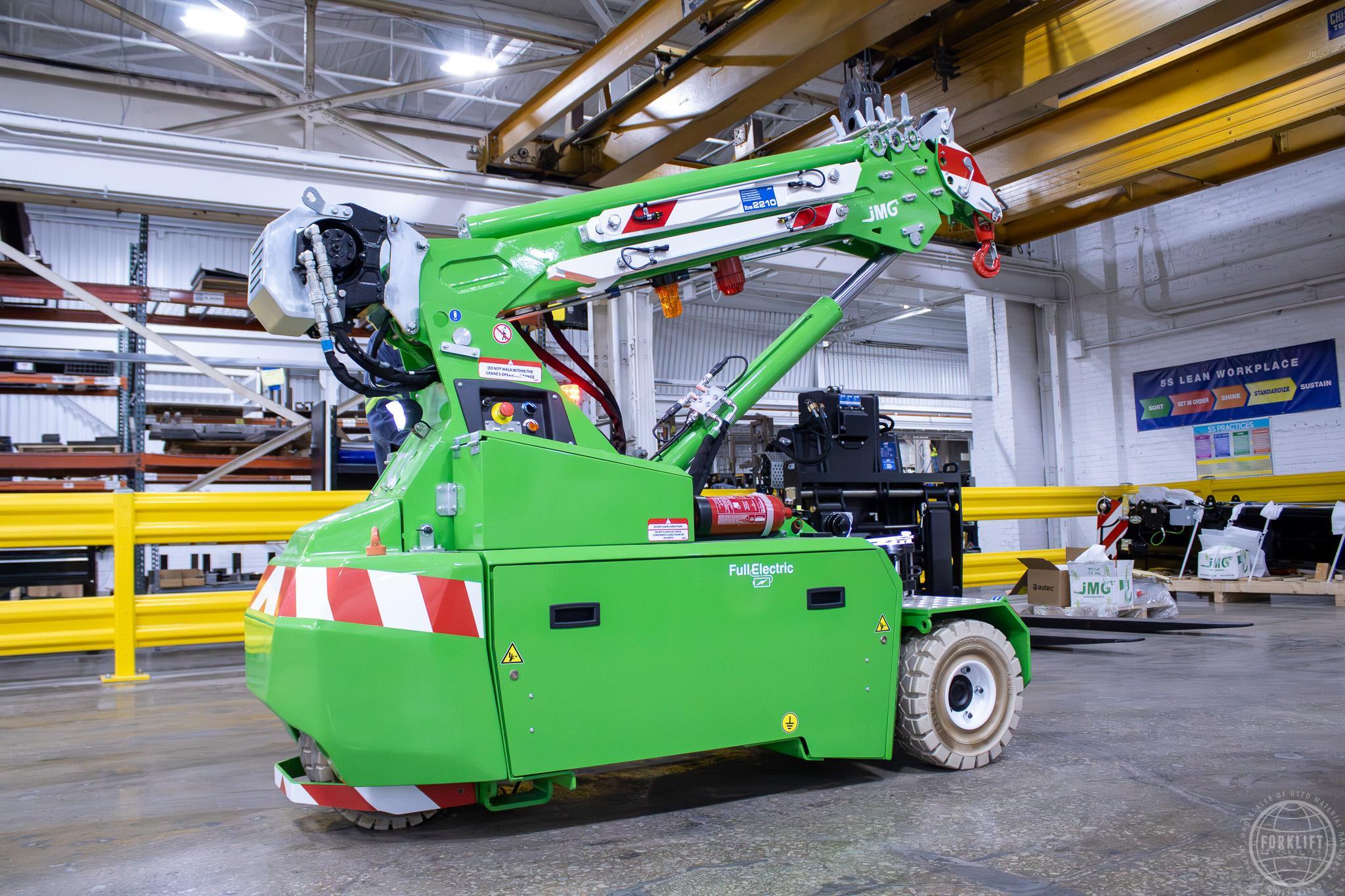

JMG MC25S electric crane – Compact Electric Lifting for Confined Work Areas

The JMG MC25S electric crane combines a compact footprint with radio-controlled operation for precise pick-and-carry work. At approximately 35 inches wide, the machine is designed to maneuver through restricted industrial spaces where a larger crane may be impractical.

The MC25S has a maximum rated capacity of 5,500 lb. Actual lifting capacity depends on boom position, reach and machine configuration. Operators must use the applicable JMG load chart for every lift.

Verified JMG MC25S Specifications

• Maximum rated capacity: 5,500 lb
• Electric, battery-powered operation

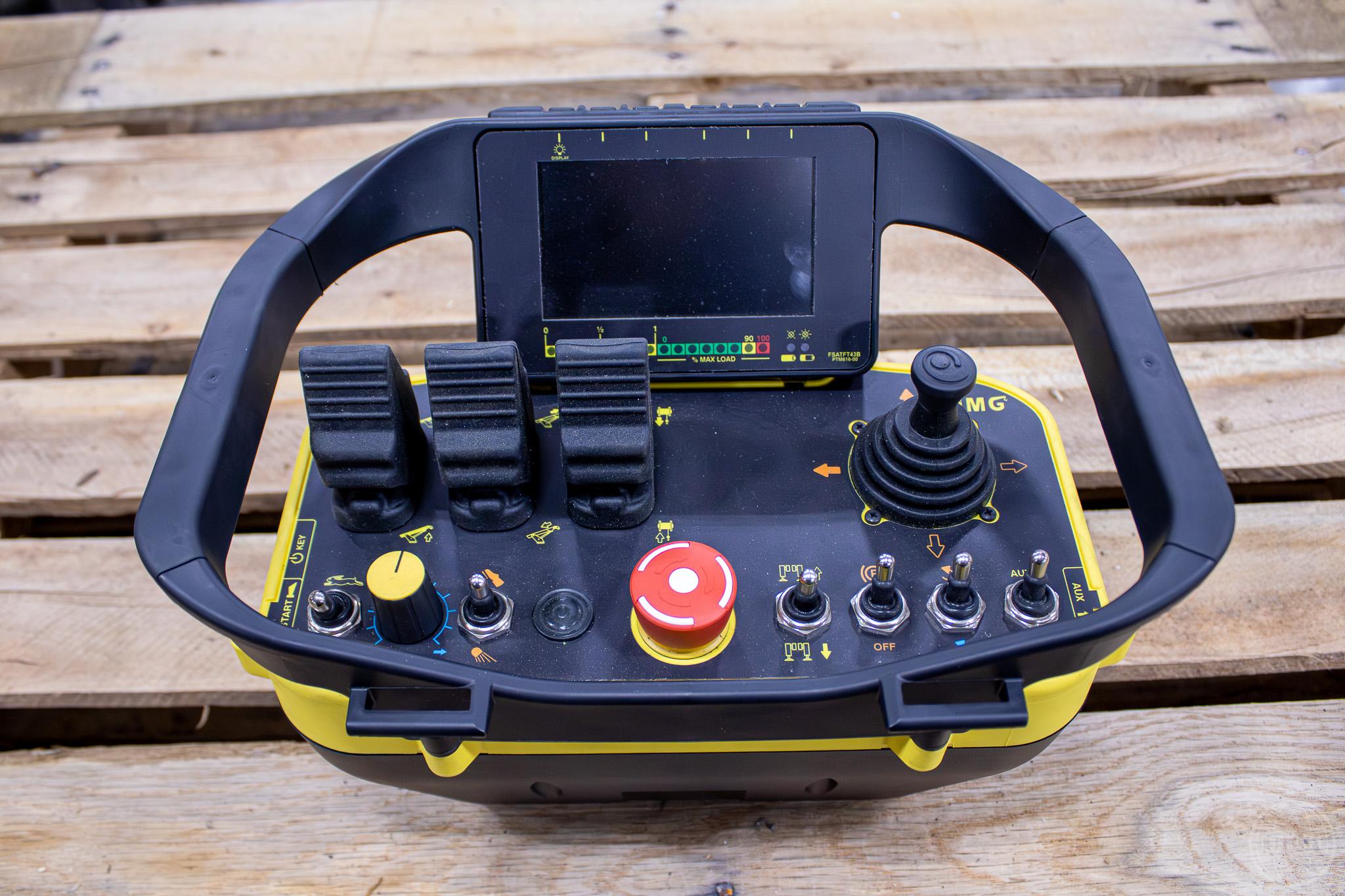

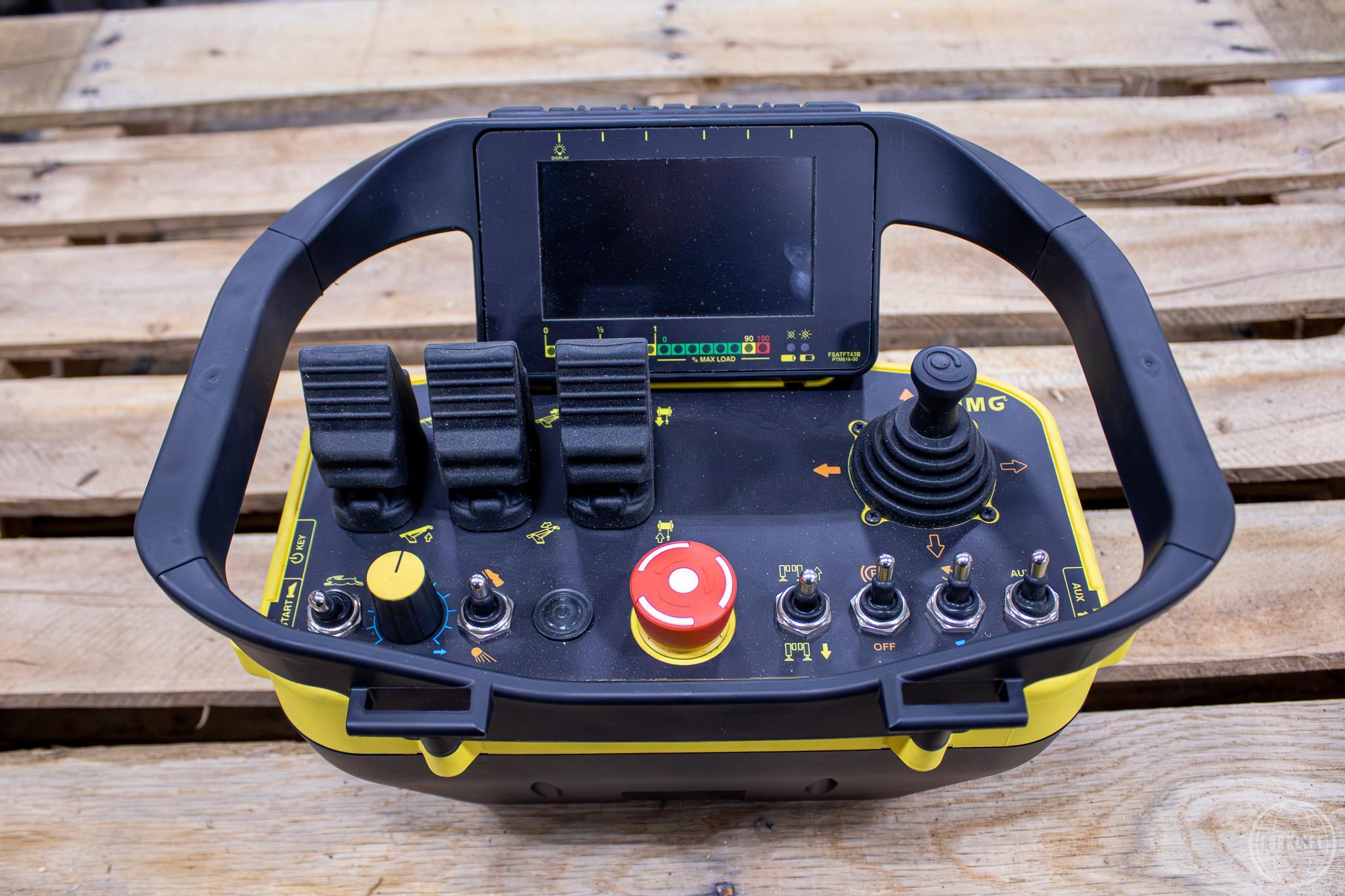

• Radio remote control

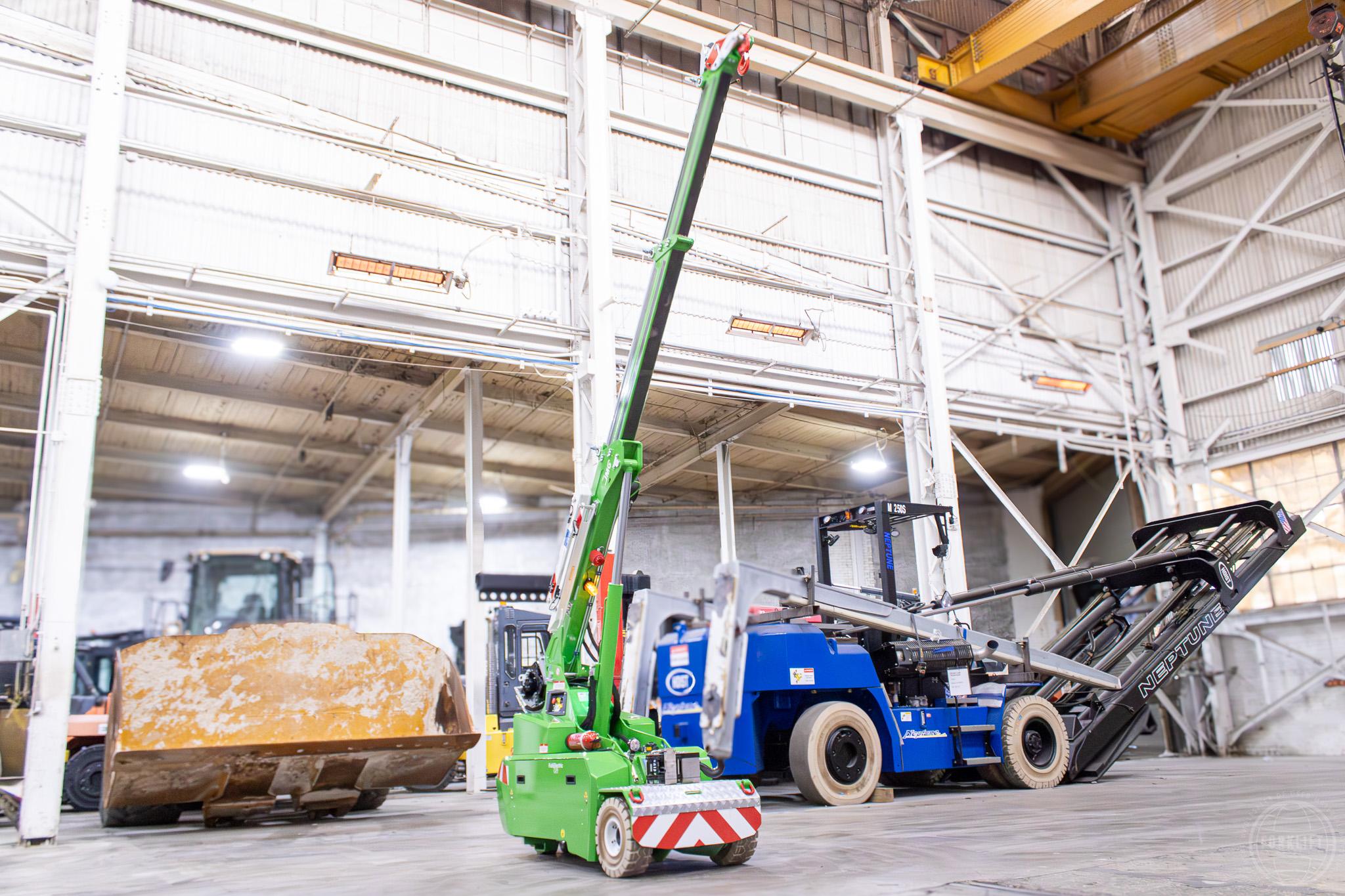

• Hydraulic sequential boom
• Three-position tilting head: 0°, +35° and +70°
• Front-wheel drive with counter-rotation
• Rear steering with a -90° to +90° steering angle

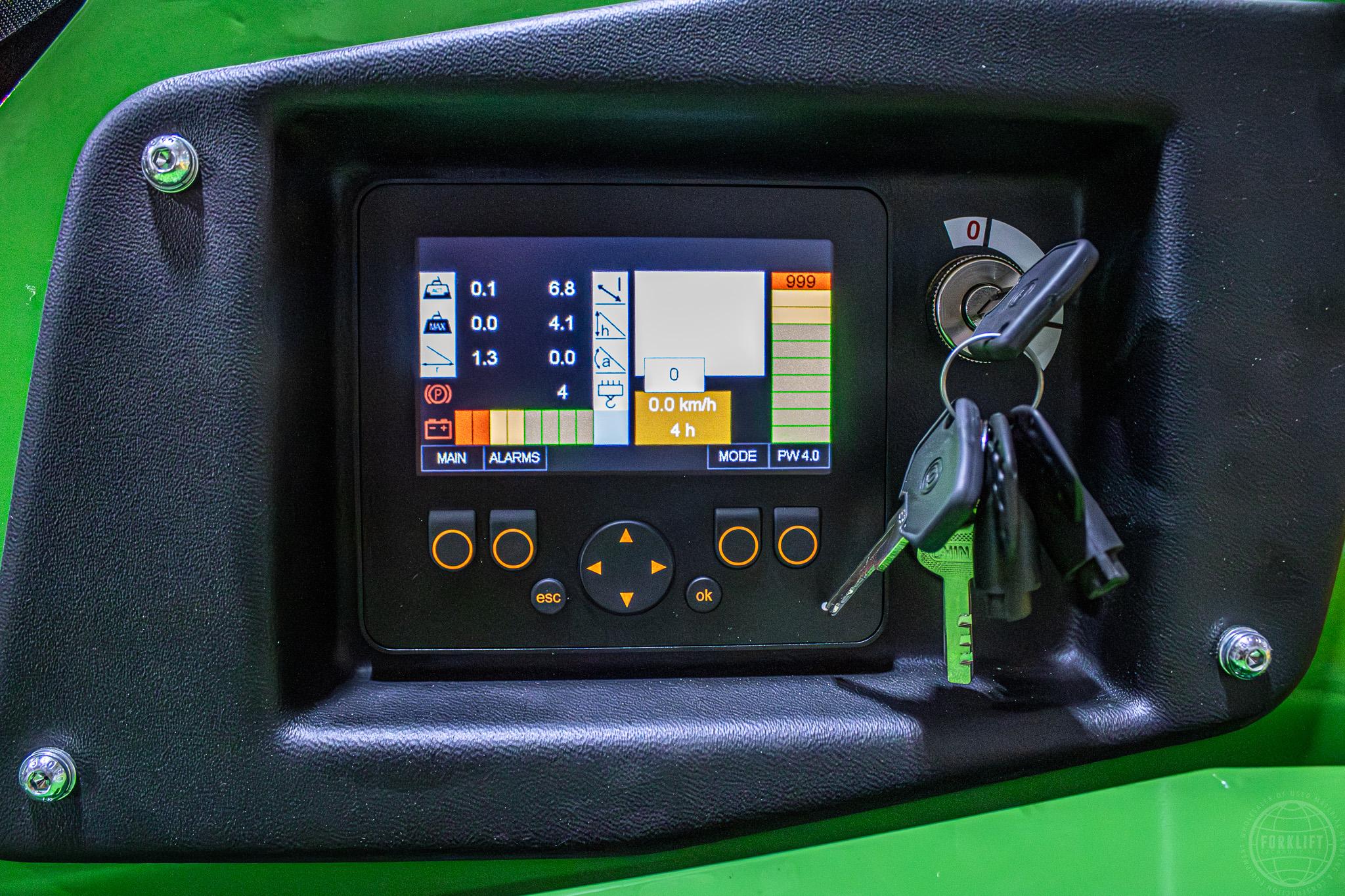

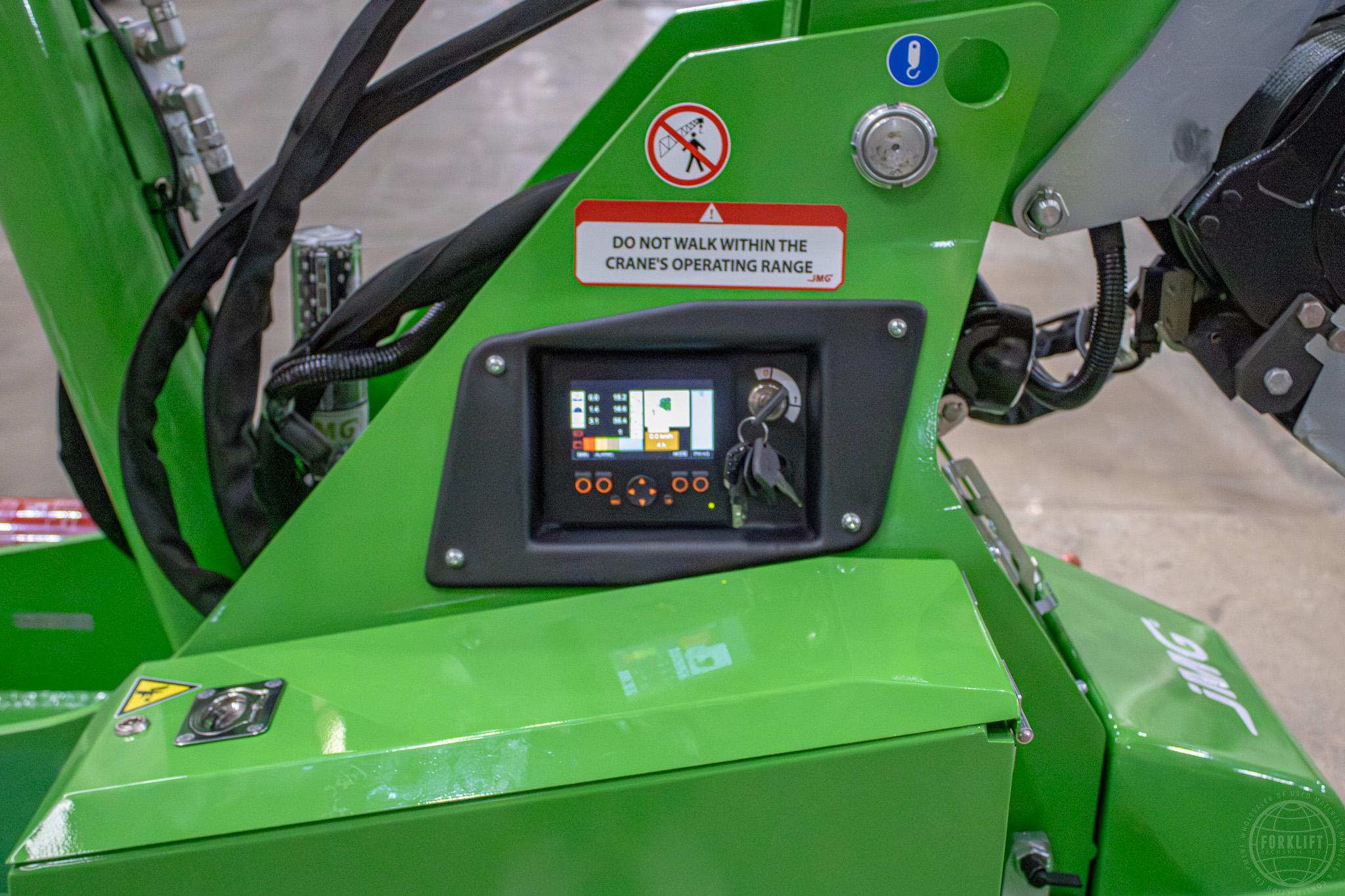

• Electronic load indicator and tilting-moment limiter
• Automatic braking system
• Approximate dimensions: 7 ft 2 in long × 2 ft 11 in wide × 5 ft 3 in high
• Approximate machine weight: 5,200 lb

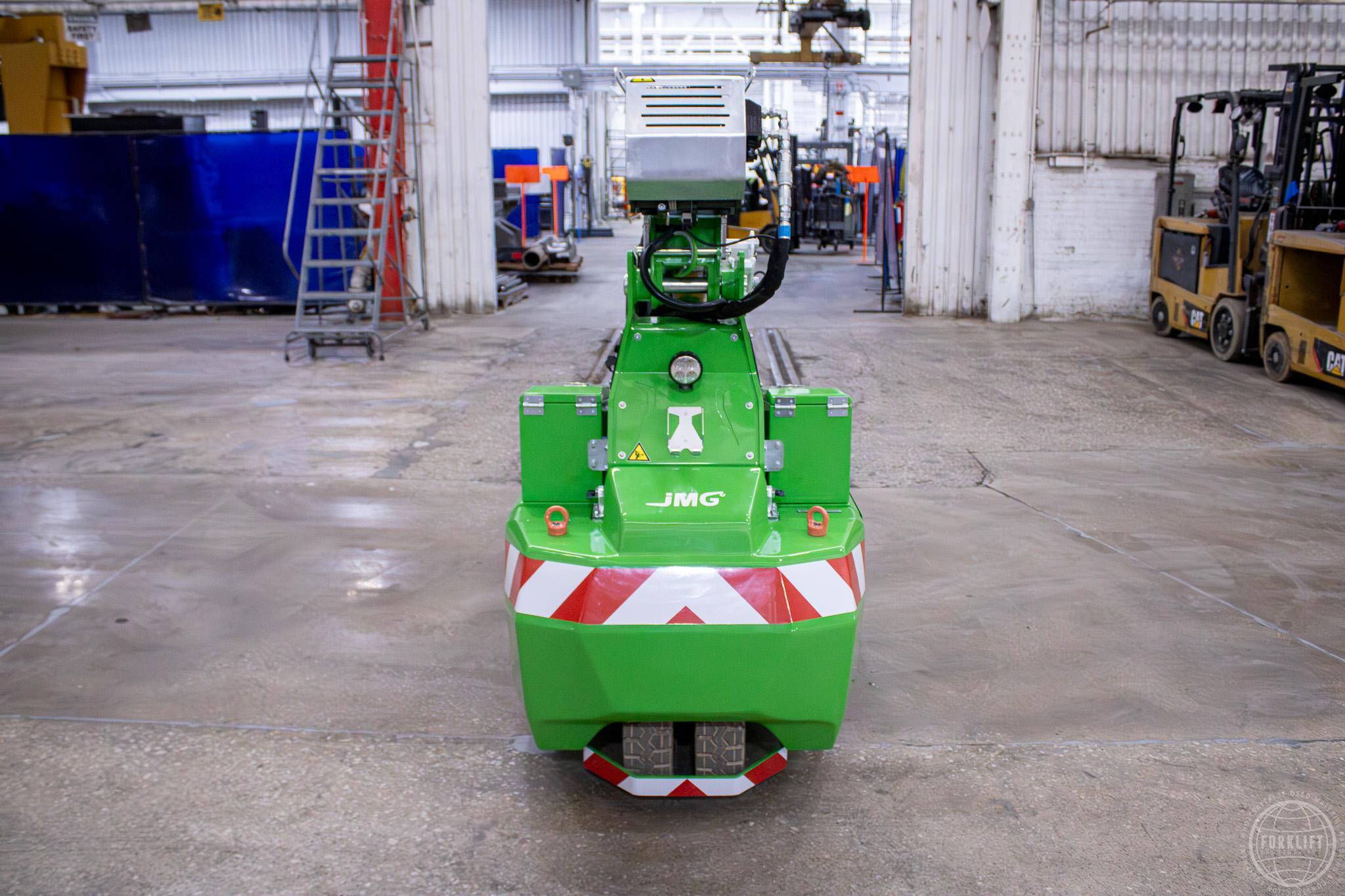

• One removable counterweight: approximately 1,600 lb

Built for Controlled Material Handling

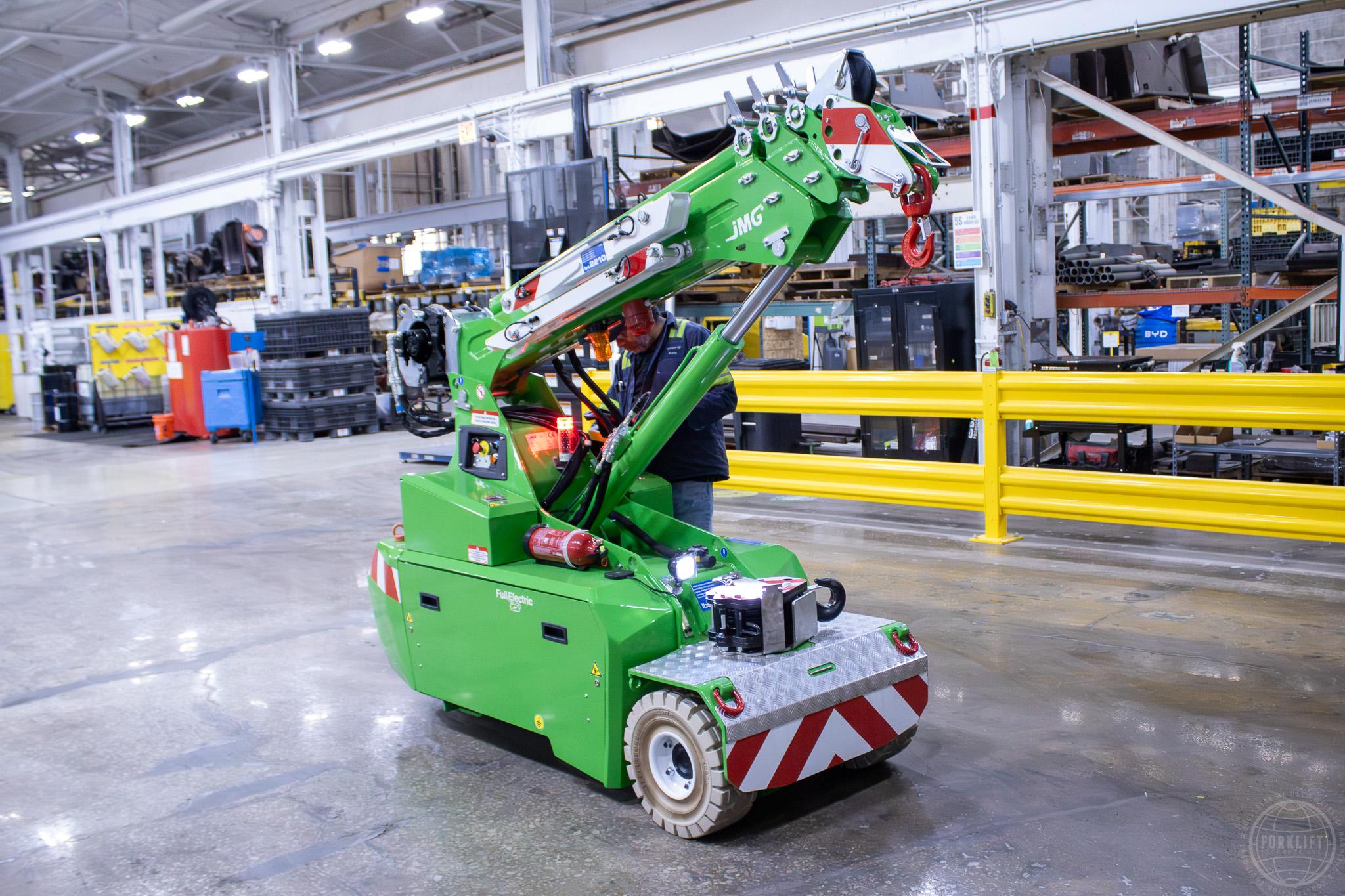

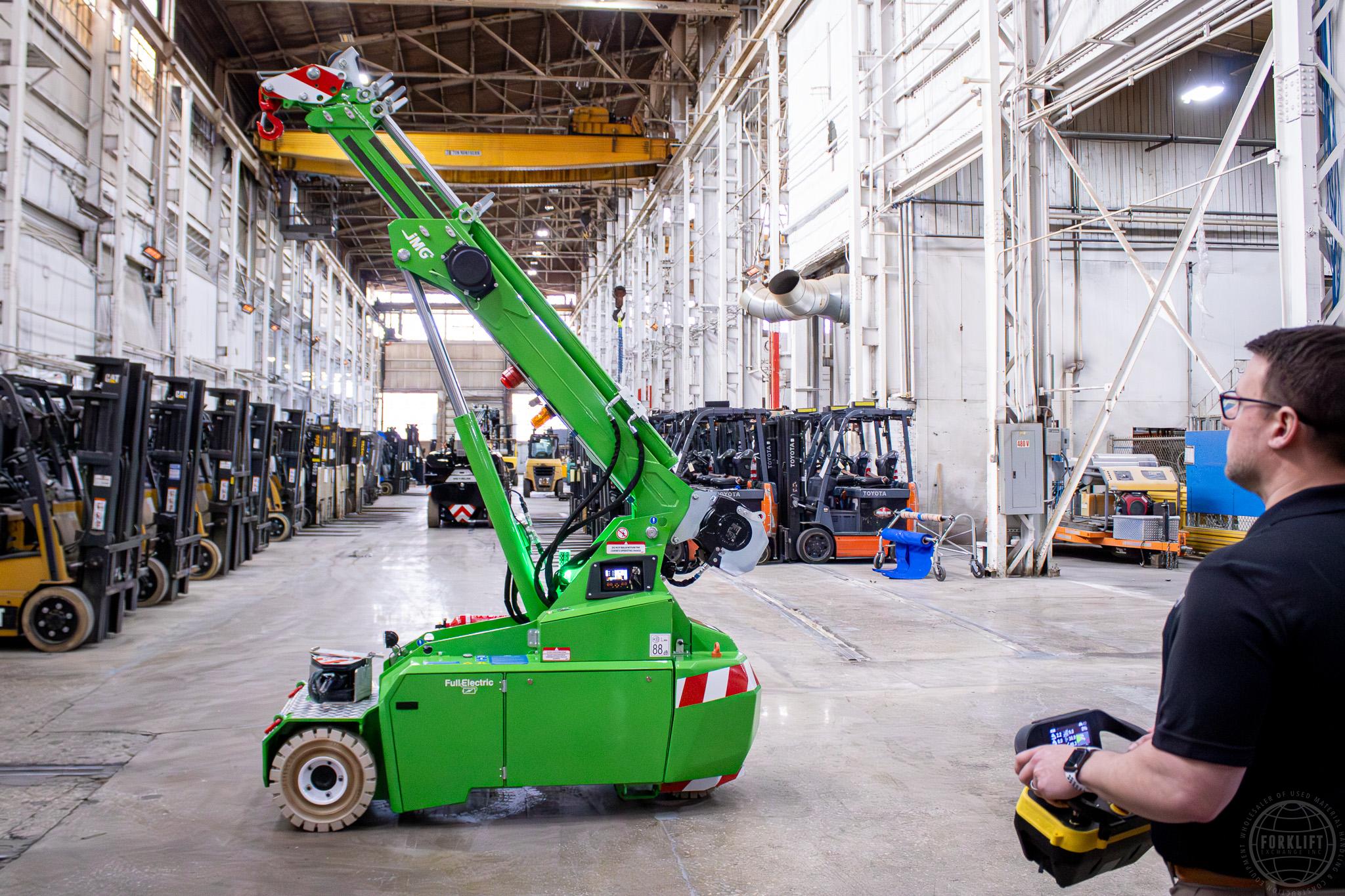

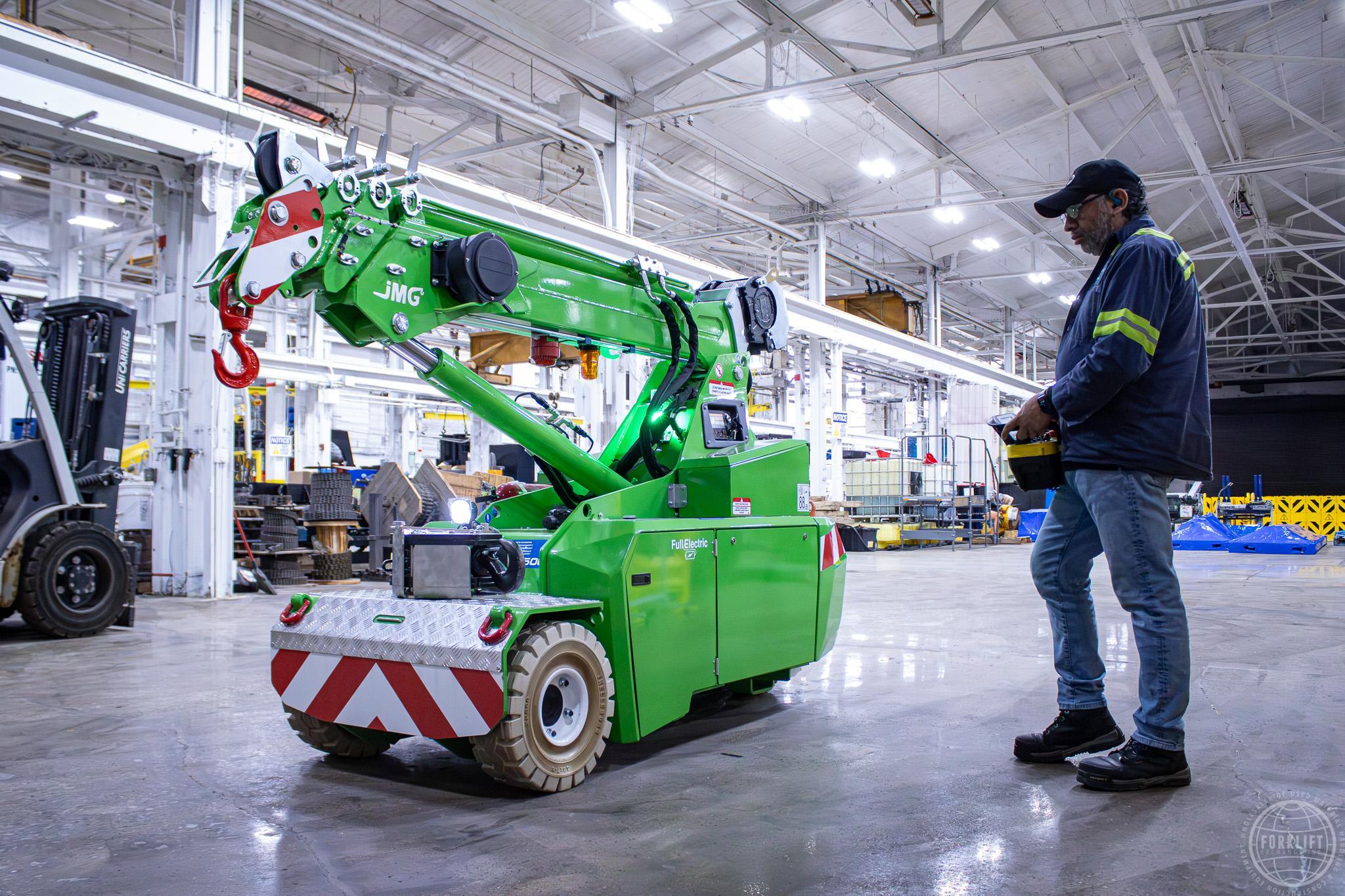

The compact chassis and remote operation allow the operator to select a clear working position while maneuvering and placing a load. The MC25S can support machinery moving, industrial maintenance, production work, equipment installation and other applications requiring controlled lifting in limited space.

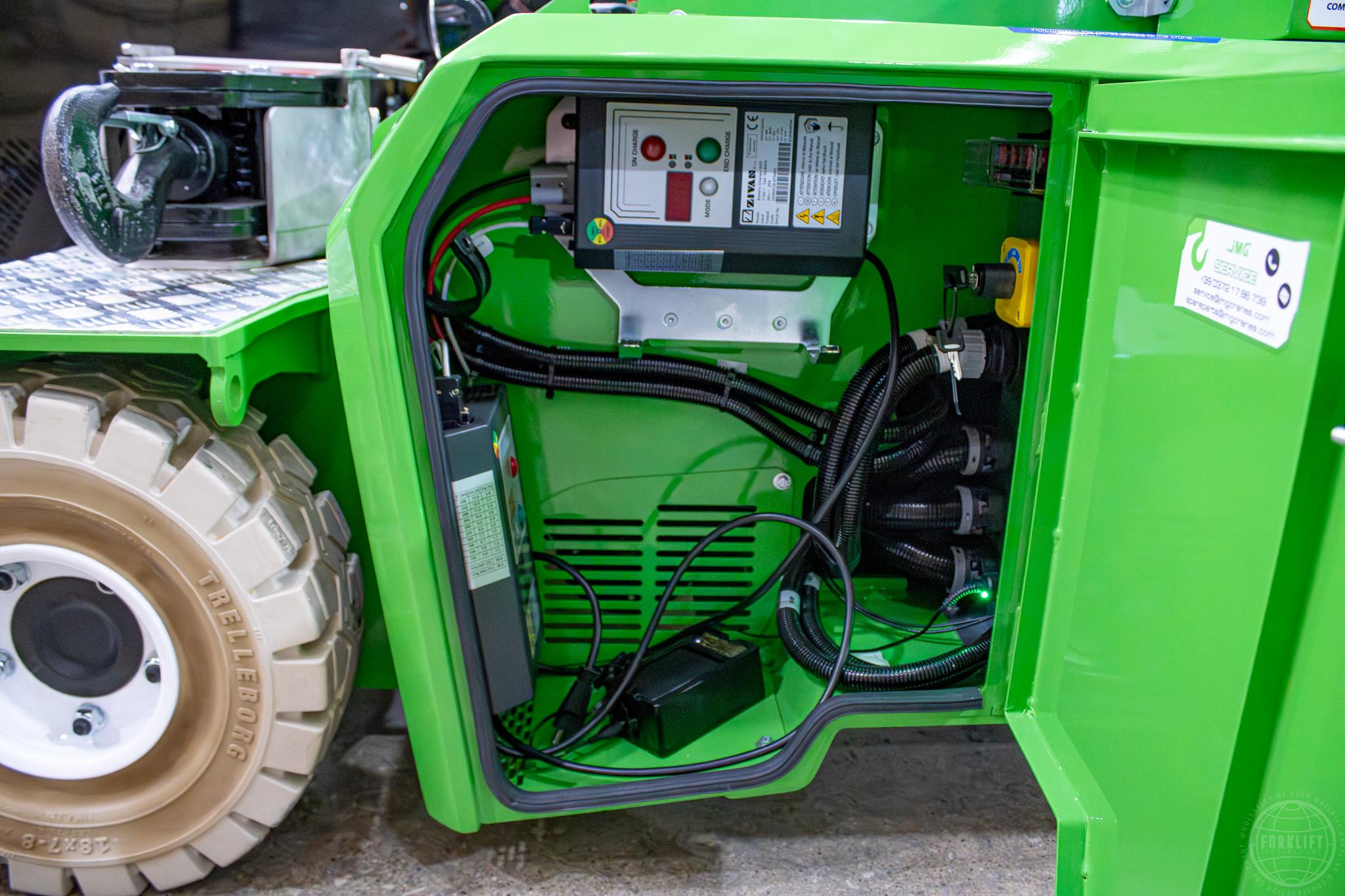

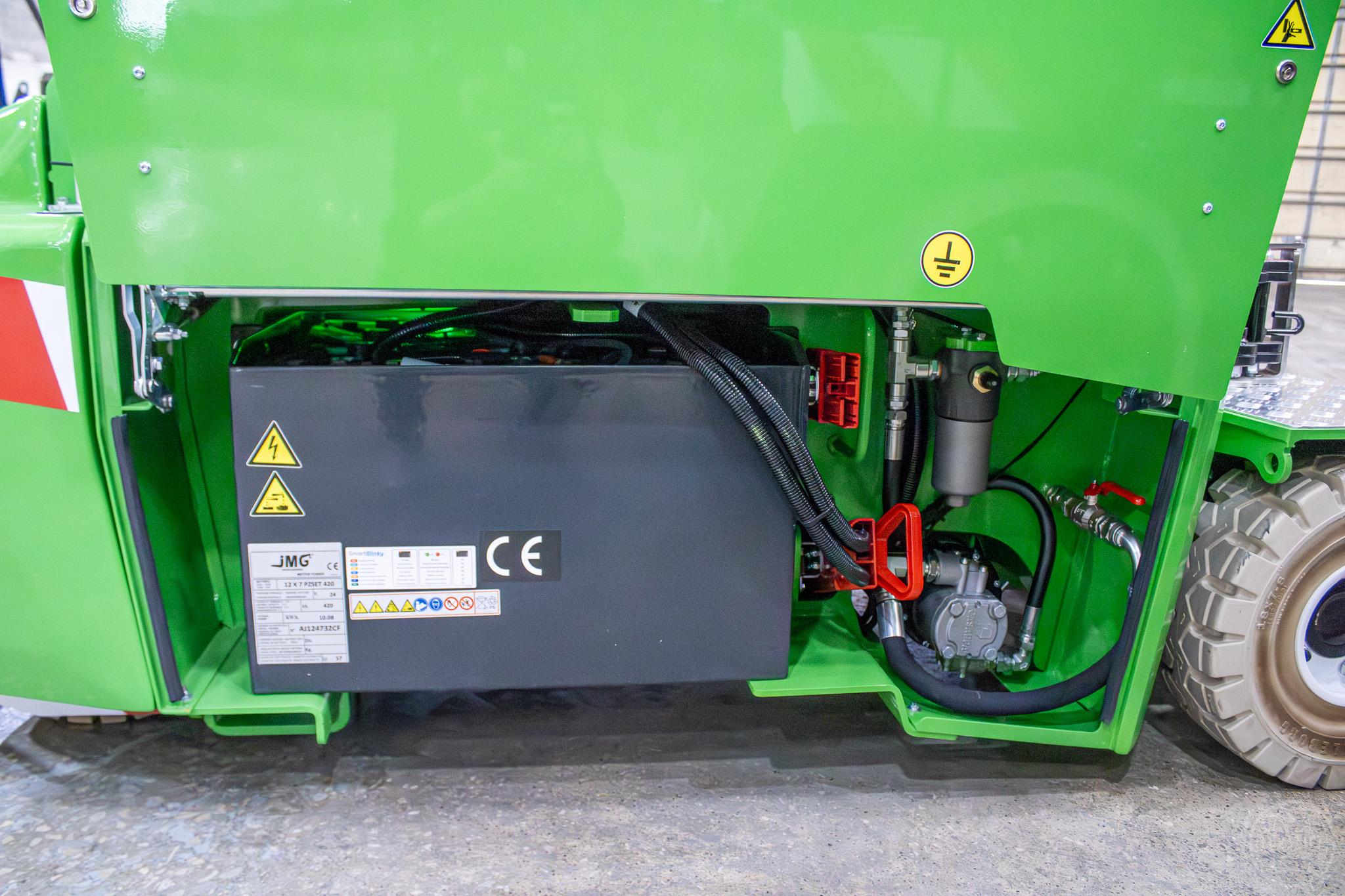

The standard model uses a 24V 420Ah lead-acid battery. JMG states operating autonomy of up to eight hours, although actual operating time depends on load, duty cycle, battery condition and site conditions. Confirm the battery installed in the offered unit.

Request Configuration and Load-Chart Details

Contact Forklift Exchange to confirm availability, location, installed battery, included attachments and the load chart applicable to this MC25S. Hydraulic winch, jib, extension and other optional equipment should be listed only after the offered configuration is verified.
