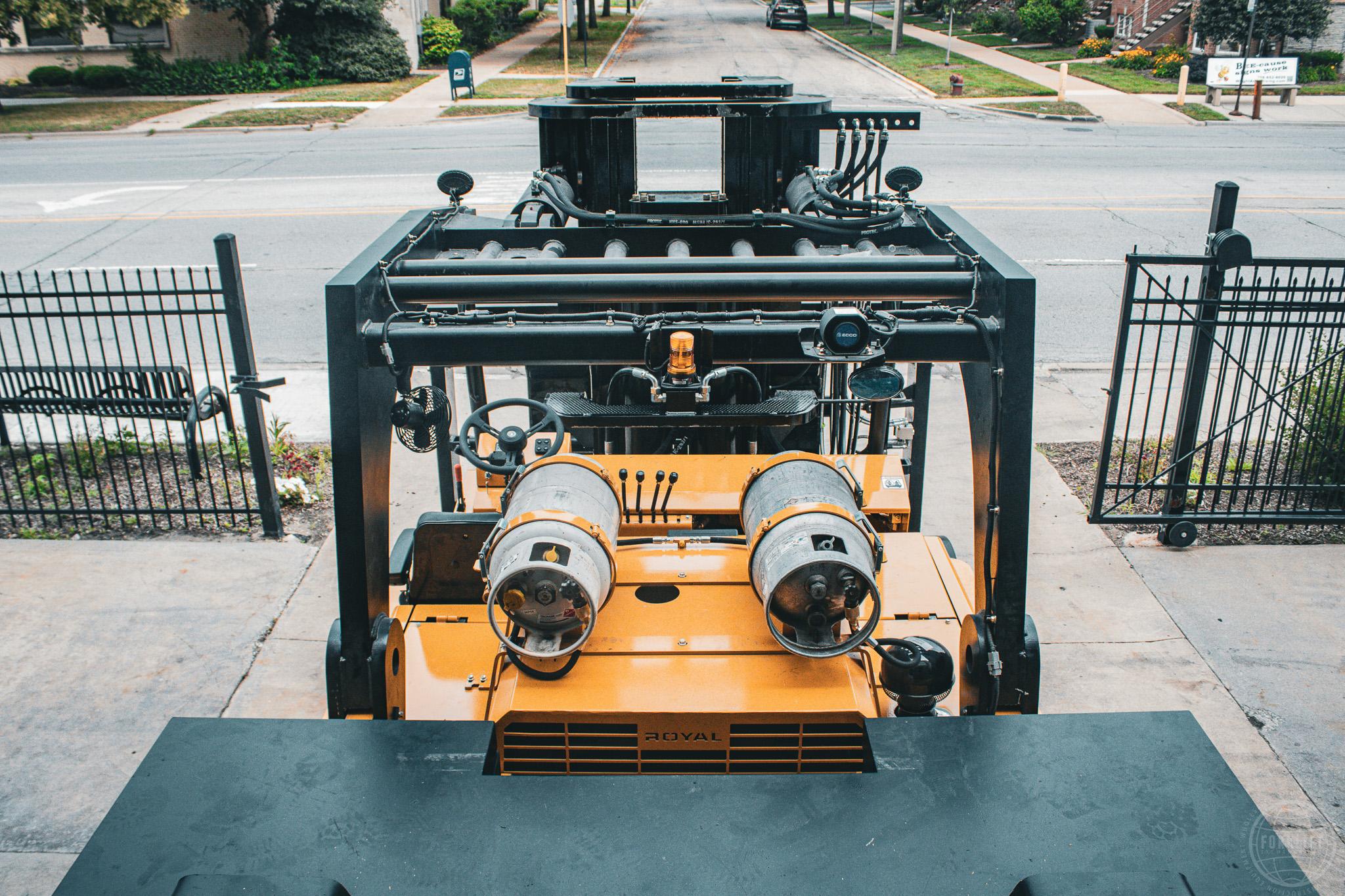

ENGINE: KEM 5.7L LP V8
TRANSMISSION: Electric Powershift Funk 3-Speed
DRIVE AXLE: 97″ Planetary Axle
TIRES: FRONT 36” X 34” X 30” | REAR 28” X 16” X 22”
GRADE: EMPTY 22% | LOADED 16% | STALL 36%
TILT: FORWARD 10° | BACK 5°
WEIGHT: GROSS: 109,200 LBS | BOOM: 10,500 LBS

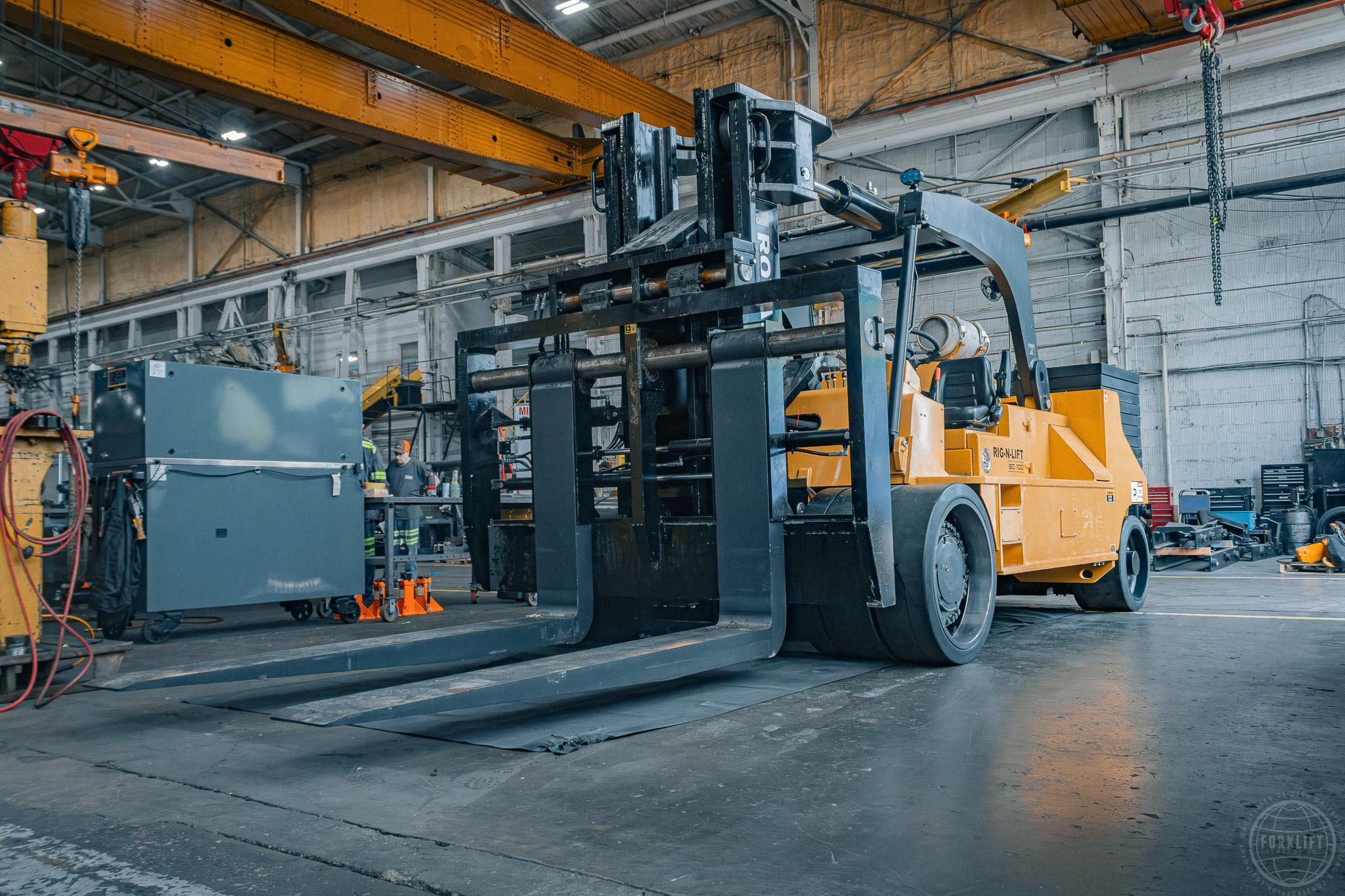

FORKS: 4,400 LBS

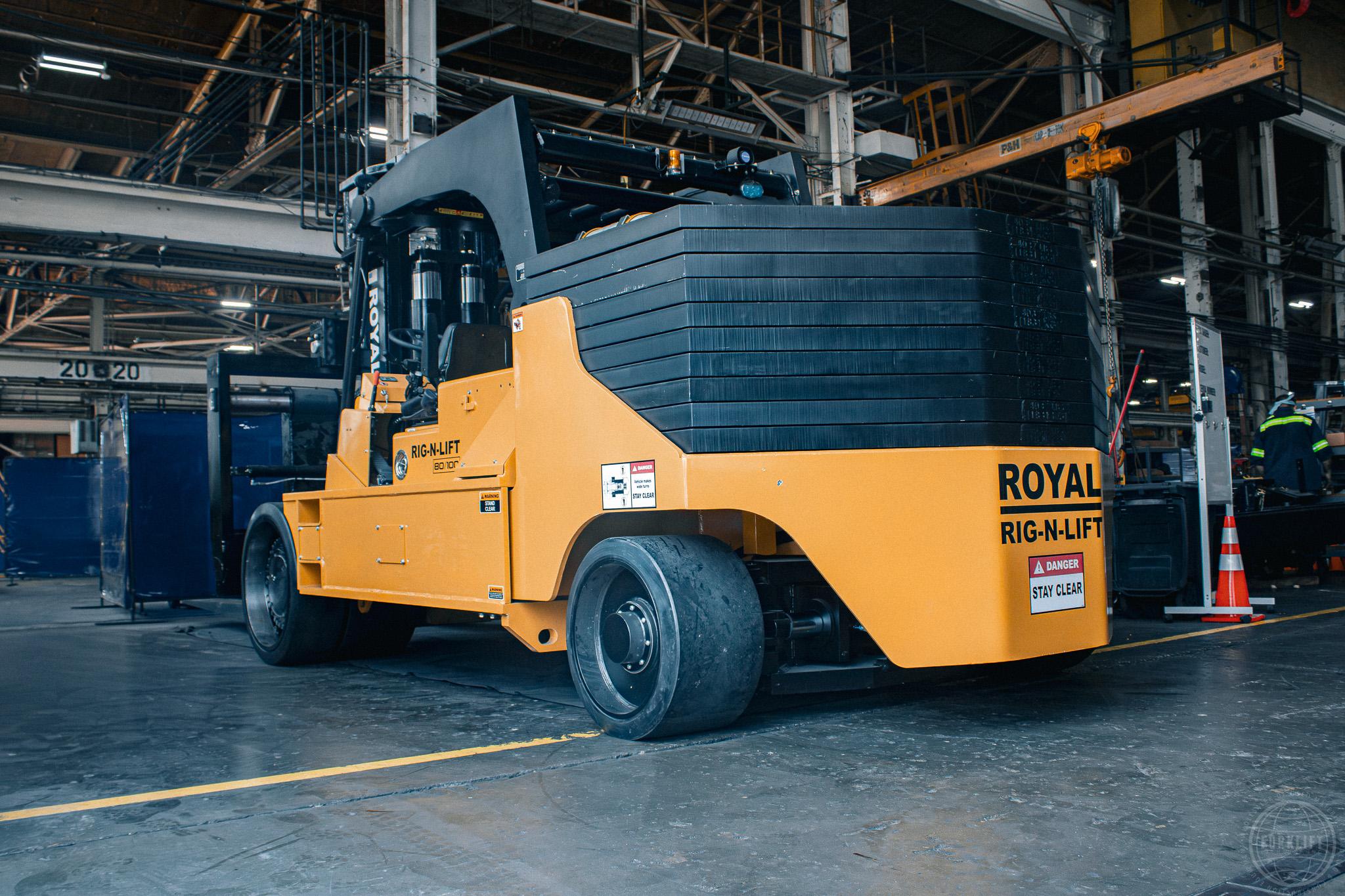

COUNTERWEIGHT: 36,000 LBS (3 @ 12,000 LBS each)
BOOM REACH (in):
Ground to Top of Boom Lowered – 119″
Ground to Boom Lift Eye Lowered – 106″
Ground to Boom Lift Eye Raised-Boom Only – 161″
Ground to Boom Lift Eye Raised-Mast and Boom – 237″
Ground to Top of Boom Raised-Mast and Boom – 250″
Boom Lift Eye From Face of Boom-Retracted/Extended – 48″/72″
LOAD CAPACITY:
89,750 LBS @ 36” RETRACTED | 105,450 LBS @ 36” EXTENDED
WIDTH: 102″
WHEELBASE: RETRACTED – 132” | EXTENDED – 156”
Additional Features:
Comes with Boom Stand
Horizontal Boom retracts while using forks
2-stage FFL roller mast
Availability:In Stock
