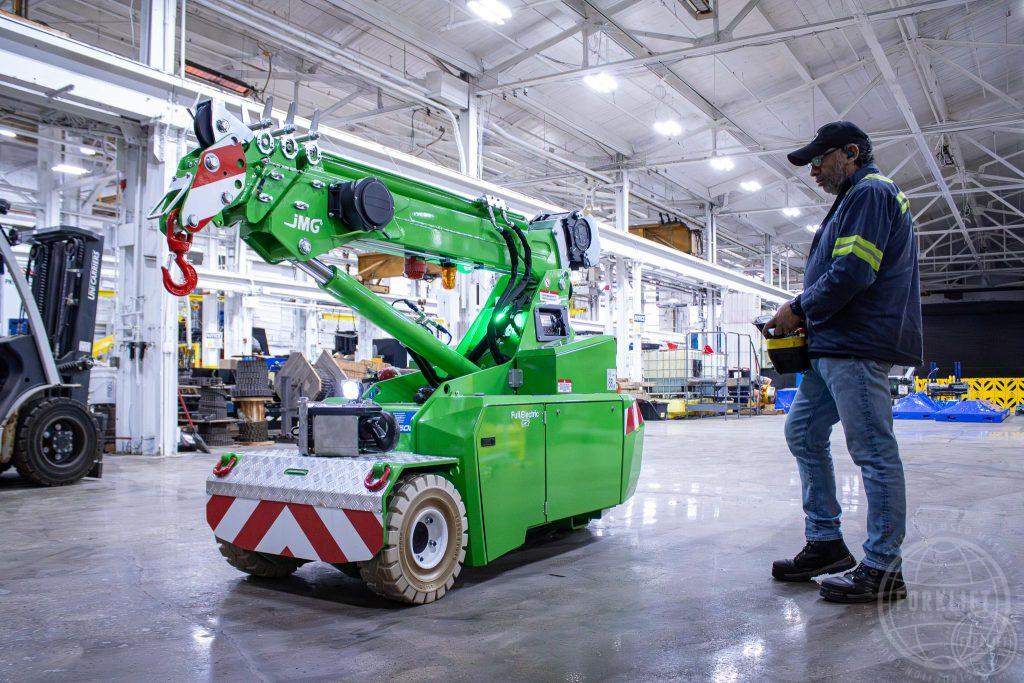

Compact cranes provide a practical way to lift, transport, and position heavy equipment inside industrial facilities where floor space, access, and overhead clearance are limited. Their small footprint and precise controls allow them to operate in narrow aisles, around production machinery, and in other areas that may be difficult for conventional lifting equipment to reach.
Manufacturing plants, machine shops, warehouses, power-generation facilities, and maintenance departments regularly need to move heavy loads without disrupting the entire workplace. In these environments, choosing the largest crane is not always the best solution. The equipment must also fit through the available access points, maneuver around obstacles, protect the floor, and position the load accurately.
Fully electric pick-and-carry cranes address many of these challenges. They combine lifting and load transport in one compact, mobile machine, making them a compelling option for demanding indoor applications.
Compact cranes are mobile lifting machines engineered to work in confined or congested areas. Depending on the model, they may feature a telescopic boom, removable counterweights, remote control, specialized attachments, and steering systems designed for tight turns.
Electric pick-and-carry models can lift a load and travel with it, provided the movement remains within the crane’s approved load chart and operating instructions. This capability can simplify jobs that would otherwise require several forklifts, a fixed overhead system, or a larger crane with additional setup requirements.
The JMG electric crane range includes compact pick-and-carry models for industrial lifting applications. Forklift Exchange provides nationwide support for organizations evaluating this equipment for machinery moving, plant maintenance, equipment installation, and other specialized work.
Space is often the defining constraint of an indoor lift. Production equipment, storage racks, columns, doorways, utility lines, and active work zones can leave little room for a conventional crane.
Compact cranes are designed with smaller dimensions and tight maneuverability in mind. This allows selected models to travel through narrow passages and work closer to the load. A facility may be able to complete the lift where the equipment is located instead of moving surrounding machinery or opening part of the building.
Before selecting a crane, measure:
The crane must fit throughout the entire route—not only at the final lifting position.
Electric compact cranes do not produce exhaust emissions at the point of operation. This makes them especially useful in enclosed facilities where diesel-powered equipment could create ventilation or air-quality concerns.
Electric drive systems also support quieter operation than comparable combustion-powered equipment. Reduced noise can make communication easier around an active lift, although the work area must still be properly controlled and all required warning practices followed.
According to JMG, its battery-powered cranes combine compact dimensions with precise movement and are intended for indoor and space-constrained applications. Learn more about the benefits of fully electric pick-and-carry cranes.
Traditional lifting plans may require one machine to raise a load, another to transport it, and additional equipment to complete the final placement. Every transfer introduces another step that must be planned and controlled.
A properly selected pick-and-carry crane can lift and transport the load in one operation. This may reduce handoffs, equipment congestion, and setup time.
Typical applications include:
For a closer look at these applications, read about machinery moving with electric pick-and-carry cranes.
Industrial lifting frequently involves more than moving a load from one general area to another. A machine may need to be aligned with anchor points, production systems, utilities, or adjacent equipment.
Many modern compact cranes provide proportional controls that help operators make smooth, measured movements. Radio remote control can also allow the operator to select a suitable viewing position instead of relying on a fixed operator station.
Precision does not eliminate the need for a lift plan, qualified personnel, spotters, or proper rigging. It does, however, give the crew a machine designed for controlled positioning in areas where working tolerances may be small.
Moving large lifting equipment through a working plant can require production shutdowns, temporary equipment removal, or extensive route preparation. A smaller crane may reduce the amount of space that must be cleared.
Compact cranes can be particularly valuable during:
Reducing the number of machines involved may also leave more room for the lifting team to establish controlled work zones. The actual impact depends on the load, facility layout, crane configuration, and operating plan.
Selected compact cranes can accept different lifting accessories for specialized work. Available equipment may include hooks, winches, hydraulic jibs, forks, boom extensions, or non-marking tires.
The correct configuration depends on the load and the working environment. Important questions include:
Attachments and configurations should only be used when approved for the specific crane. Never estimate capacity from the crane’s maximum rating alone.
The same combination of maneuverability, electric power, and controlled movement can solve lifting problems across many sectors.
Common users include:
JMG produces electric pick-and-carry cranes in several sizes and configurations. For example, the compact JMG MC25S has a manufacturer-listed maximum capacity of 2.5 metric tons and dimensions of approximately 2,190 by 900 by 1,610 millimeters. Actual lifting capacity changes with boom position, reach, configuration, and operating conditions, so the applicable load chart must always guide selection and use.
A successful equipment decision begins with the application—not simply the crane’s headline capacity.
Document the verified weight, dimensions, lifting points, and center of gravity. If the weight is uncertain, resolve it before selecting the crane or preparing the lift.
Measure every doorway, aisle, corner, incline, transition, and overhead restriction between pickup and final placement. Include sufficient clearance for the crane, load, rigging, and required personnel.
A crane’s maximum rating usually applies only under specific conditions. Available capacity may decrease as boom reach or lift height increases. Review the manufacturer’s load chart for the planned configuration.
Industrial floors vary considerably. Evaluate floor capacity, surface condition, slopes, drains, transitions, coverings, and any underground structures that could affect the lift.
For an electric crane, consider shift length, expected duty cycle, battery condition, charger requirements, and available charging time.
Crane selection is only one part of the job. Rigging, operator qualifications, communication, load control, exclusion zones, and manufacturer requirements must all be addressed.
The OSHA guide to cranes and derricks emphasizes following rated capacities, load charts, warnings, and the manufacturer’s operating instructions. Applicable requirements depend on the equipment, workplace, and jurisdiction.
The answer depends on the lift.
Forklifts are highly effective when a stable load can be supported on forks and transported within the truck’s rated configuration. Compact cranes may be more appropriate when a load must be suspended, reached from above, positioned beyond the face of the machine, or placed with specialized rigging.
A pick-and-carry crane should not be treated as a universal replacement for a forklift. Instead, it provides another lifting option for applications where boom reach, suspended-load handling, maneuverability, or precise placement is important.
Forklift Exchange offers nationwide support for JMG electric pick-and-carry cranes. Models such as the JMG MC25S and MC100.08 are designed for facilities that need lifting capability, compact dimensions, electric operation, and precise control.
The best model depends on more than load weight. Available access, required reach, lift height, floor conditions, attachments, travel distance, and duty cycle all affect the recommendation.
Explore more examples of electric pick-and-carry cranes for tight spaces or review Forklift Exchange’s JMG crane and specialized-equipment support.
Compact cranes can help industrial facilities complete demanding lifts in spaces where larger equipment may be difficult or inefficient to use. Their electric operation, small footprint, pick-and-carry capability, and precise controls make them especially useful for indoor machinery moving and equipment installation.
Every lifting application is different. Before selecting equipment, confirm the load, access route, floor conditions, required reach, and operating environment.
Contact Forklift Exchange to discuss your application, compare JMG models, and identify a compact crane configuration suited to your facility.
