A coil handling lift truck should never be selected based on coil weight alone. A 30-ton coil does not automatically require a lift truck with a nominal 30-ton capacity.
The coil’s dimensions, load center, required lift height, attachment configuration, facility layout, and production demands all affect the capacity and design of the truck. Ignoring any of these factors can result in equipment that does not perform as expected—or is not properly rated for the application.
For can manufacturers, aluminum processors, steel service centers, and other operations that routinely move coils, equipment selection should begin with a complete application review.
Here are six critical factors to consider when specifying a coil handling lift truck.
Coil weight is an essential starting point, but it does not tell the entire story.
The equipment supplier should also know the coil’s:
Two coils may weigh exactly the same while placing very different demands on a lift truck. A wider coil or one with a larger outside diameter may position its center of gravity farther from the truck. That additional distance can reduce the truck’s effective lifting capacity.
It is also important to evaluate the complete range of coils handled at the facility—not simply the heaviest coil currently in production. A truck configured for one coil size may not be suitable for every load in the operation.
The stated capacity of a lift truck applies under specific operating conditions, including a defined load center and lift height. When the load’s center of gravity moves farther away from the truck, the leverage placed on the equipment increases.
This principle is particularly important in coil handling because the ram and coil project forward from the carriage.
For example, two coils can each weigh 30 tons but have different widths and centers of gravity. The wider coil may place its weight farther out on the ram, creating a greater load moment. As a result, it may require a truck with substantially more nominal capacity.
OSHA explains that load size, position, and weight distribution affect a forklift’s capacity and stability. It defines the load center as the horizontal distance from the face of the attachment to the load’s center of gravity. For more information, review OSHA’s guidance on forklift load composition and stability.
The truck’s residual capacity should therefore be calculated for the actual:
This calculation should be completed or approved by the appropriate equipment manufacturer or qualified engineering resource.

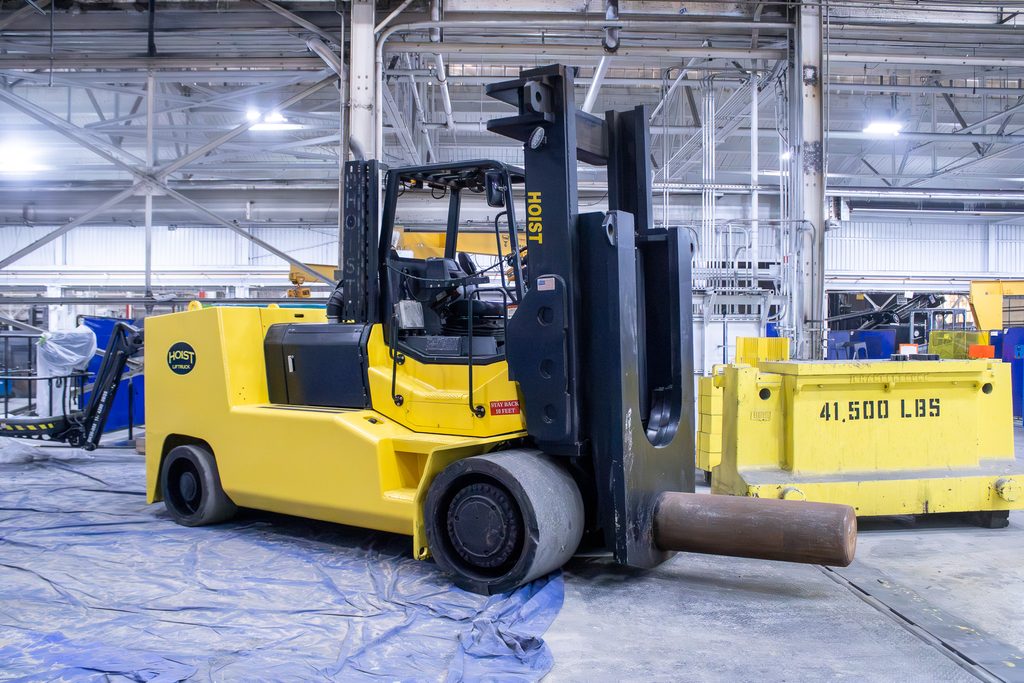

The ram is the primary load-engaging component in many horizontal coil handling applications. Its dimensions must match the coil and the way operators interact with storage and production equipment.
The ram must fit inside the smallest coil inside diameter while allowing enough clearance for practical loading and unloading. A ram that is too large may not enter the coil consistently. A ram that is too small may provide inadequate support or allow undesirable load movement.
The ram must be long enough to support the coil properly without adding unnecessary forward distance. An excessively long ram can shift the combined center of gravity farther away from the truck and reduce available capacity.
The required usable length should account for:
The ram’s weight also matters. Like any front-end attachment, it becomes part of the truck’s capacity calculation. OSHA notes that attachments can affect a forklift’s center of gravity, visibility, and available capacity. The truck’s data plate should reflect the approved attachment and operating configuration.
A coil handling lift truck must be rated for the height at which it will actually handle the load—not only for ground-level travel.
Picking a coil from the floor is different from removing one from an elevated rack. Likewise, delivering coils to storage saddles, processing lines, unwind stands, or other production equipment may require different mast and attachment configurations.
Before selecting a truck, document:
Lift capacity can change as the mast rises. The equipment must have sufficient residual capacity at the maximum required height with the specified ram and coil.
The storage method should also be reviewed for clearance and approach requirements. Operators must be able to align the ram with the coil without striking nearby structures or production equipment.
High capacity alone does not make a truck suitable for a facility. The equipment must also fit and maneuver safely within the available space.
Indoor manufacturing plants often have narrow aisles, structural columns, busy intersections, production equipment, and limited room around coil storage locations. A conventional heavy-capacity truck may technically lift the load but still be too large to operate efficiently in the building.
A compact cushion tire coil handling lift truck can be especially valuable in applications involving:
Important measurements include aisle width, turning radius, right-angle stacking clearance, doorway dimensions, overhead obstructions, and the space available in front of each pickup and delivery point.
Floor conditions must also be evaluated. The truck’s total operating weight—including the truck, attachment, and coil—can be considerable. Floor capacity, surface condition, slopes, transitions, dock areas, and expansion joints may all influence the final equipment specification.
The correct coil handling lift truck must support the production schedule as well as the individual load.
An application that moves one coil per shift creates different demands than one that feeds multiple production lines continuously. Frequent lifting, long travel distances, repeated direction changes, and multi-shift operation can affect the appropriate powertrain, cooling system, tires, hydraulics, and maintenance plan.
A complete duty-cycle review should consider:
These details help determine whether the application calls for an internal-combustion or electric truck, as well as the supporting systems needed for reliable operation.
Terms such as 20-ton, 25-ton, 30-ton, and 40-ton describe broad capacity classes. They should not be treated as complete equipment specifications.
The actual selection must account for the combined effect of:
The goal is not simply to find a truck capable of lifting the coil under ideal conditions. The goal is to configure a coil handling lift truck that can perform the required work at the necessary height and load center while fitting the operating environment.
Preparing accurate application information can make the selection process faster and more reliable. Before speaking with an equipment specialist, gather the following:
A facility visit may also be valuable for complex applications. Direct observation can reveal clearance, traffic, floor, and workflow considerations that are difficult to capture through measurements alone.
With more than 30 years in the forklift and material handling industry, Nick Marshall works with customers to understand the complete application before identifying the equipment and configuration that fit their requirements.
If you are evaluating a new coil handling lift truck—or determining whether an existing truck is properly configured—contact Nick to discuss your coil weights, dimensions, storage methods, facility constraints, and production demands.
Nick Marshall | Forklift Exchange, Inc.
Phone: +1 630-235-4802
Email: nick.marshall@forkliftexchange.com
Website: www.forkliftexchange.com
Equipment capacity and configuration should always be verified for the specific attachment, load center, lift height, and operating conditions. Follow the manufacturer’s instructions, approved capacity information, and applicable workplace safety requirements.
